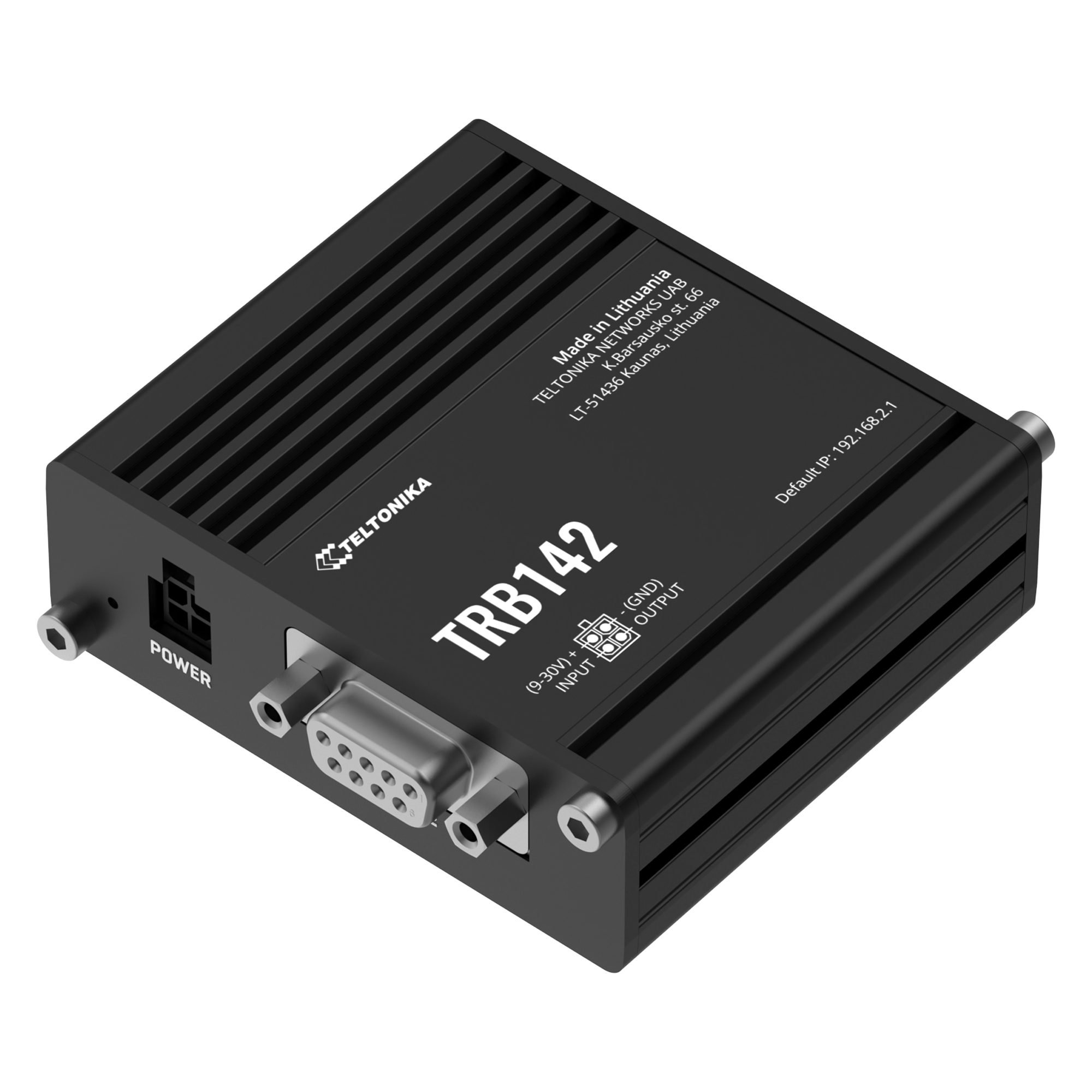

TRB142 Endüstriyel Dayanıklı LTE RS232 Ağ Geçidi
TRB142 Endüstriyel Dayanıklı LTE RS232 Ağ Geçidi

TRB142 Industrial Rugged LTE RS232 Gateway (TRB142)

Brand : TELTONIKA
Price : $131.04  + VAT
The TRB142 is an ultra-compact, lightweight, and energy-efficient IoT gateway equipped with a critical LTE connection. It comes with an RS232 interface, commonly used for remote management of industrial devices.
Add to Favorites
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend

TRB142 Industrial-Grade LTE RS232 Gateway





The TRB142 is an LTE gateway with RS232 serial port support, designed for industrial IoT (IIoT) and M2M applications. It is developed to ensure secure and uninterrupted communication with remote devices. Its compact and durable design makes it commonly used in automation, telemetry, and remote monitoring systems.



Feature Description
Connection Options RS485, TCP
Mobile Module 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
3GPP Version Version 12
Status Monitoring IMSI, ICCID, operator, operator status, data connection status, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, sent/received data, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS Functionality SMS status, SMS configuration, HTTP POST/GET, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-response, SMS send/read via SMPP
APN Automatic APN
Bridge Direct connection (bridge) between mobile ISP and devices on LAN
SIM PIN Code Management SIM PIN code management allows setting, changing, or disabling the SIM card's PIN code
Pass-through Gateway assigns the mobile WAN IP address to another device on the LAN
IP Security XFRM for IPsec with 14 encryption methods, IKEv1, IKEv2 (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
Connector 4-pin industrial DC power socket
Supported Modes Client, Server
Dimensions (W x H x D) 74.5 x 25 x 64.4 mm
Operating Temperature -40 °C to 75 °C
Routing Static routing
Weight 135 g
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Supported Connection TCP
Supported Modes Client
Data Storage 128 MB, DDR2
Processor ARM Cortex-A7 1.2 GHz





Dear customers, for detailed information about the products you are reviewing, please feel free to contact us.
