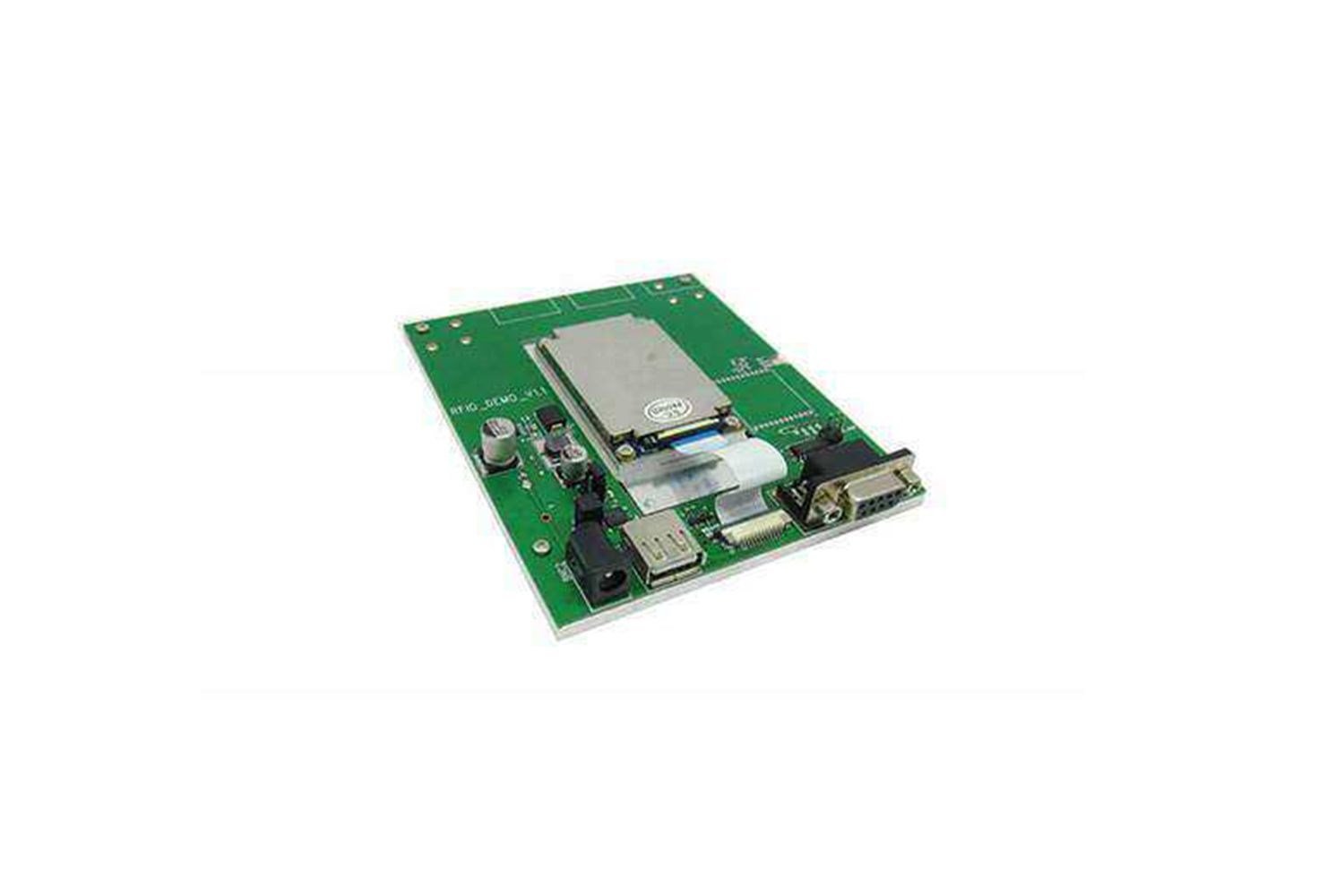

TM04-01 UHF RFID Reader Module (OUTLET PRODUCT)

TM04-01 UHF RFID Reader Module (OUTLET PRODUCT) (TM1198001)

Brand : RFgate
Price : $251.00  + VAT

TM04-01 UHF RFID Reader Module (OUTLET PRODUCT)







Operating Voltage 3.7V – 5 V
Standby Mode Current <50mA (HIGHEST level)
Sleep Mode Current <100uA (LOWEST level)
Operation Current 1.2A +/-10%
Operating Temperature - 20°C - + 55°C
Storage Temperature - 20°C - + 85°C
Nem < 95% ( + 25°C)
Air Interface Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ISO
Spectrum Range 860Mhz – 960Mhz
Output Power 0 – 33dBm
Output Power Sensitivity +/- 1dB
Output Power Flatness +/- 0.2dB
Receiver Sensitivity < -85 dBm
Highest Inventory Speed > 700 tags/sec
Tag Buffer Size 1000 tags @ 96 bitEPC
Tag RSSI Desleklenir
Antenna Detector Desleklenir
Ambient Temperature Monitor Desleklenir
Operation Mode Single/DRM
Host Computer Communications TTL Uart port
GPIO 2 Giriş Optik Kuplaj 2 Çıkış Optik Kuplaj
Max Baud Rate 115200 bps
Heat Dissipation External Cooling Fin
