SK6-X (Proximiy+HID+Mifare) Contactless SMART Card Reader (391)

Brand : Secukey
Price : $69.00  + VAT

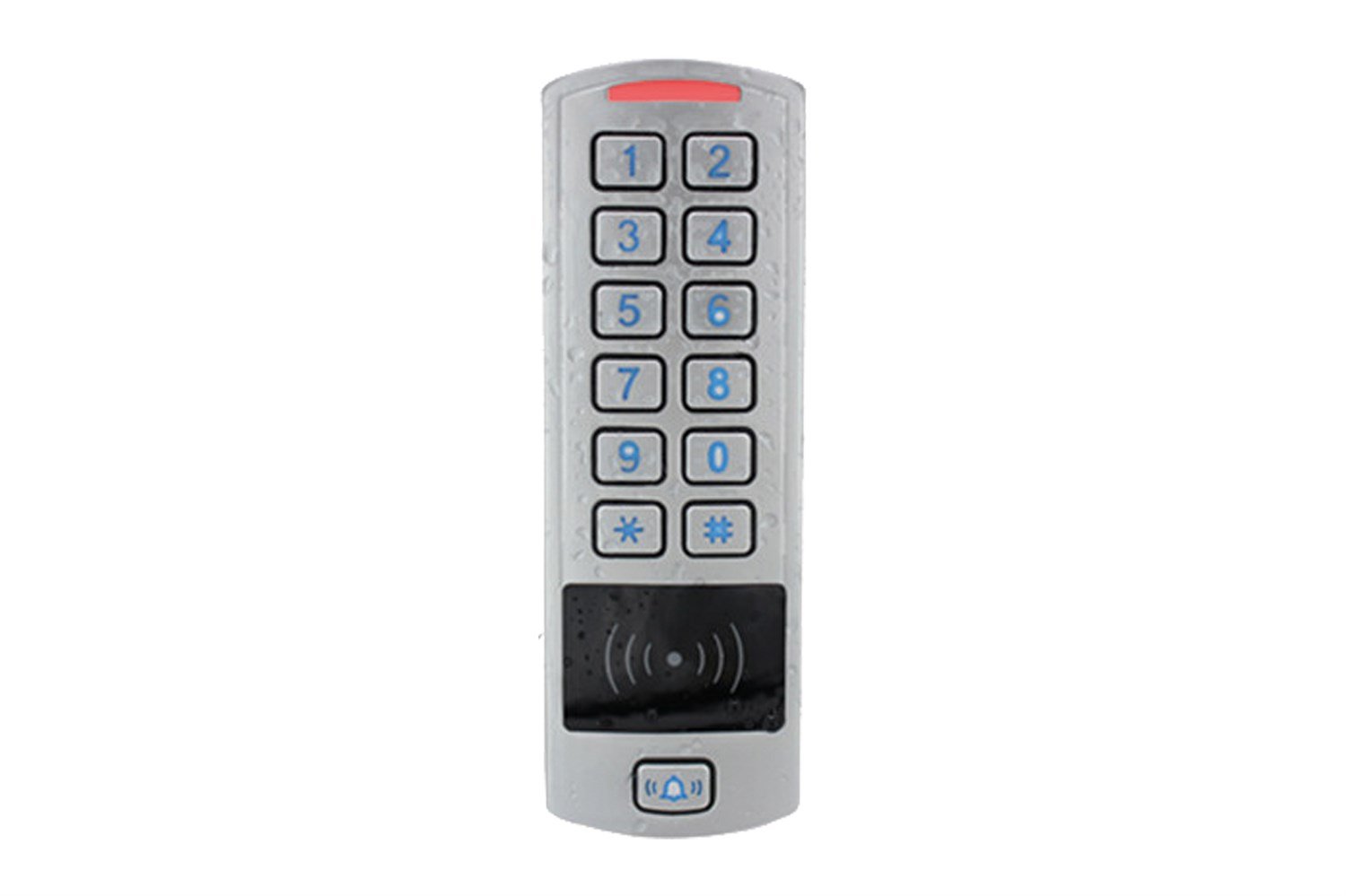

SK6-X (Proximiy+HID+Mifare) Contactless SMART Card Reader

SK6-Xcan work as standalone keypad, access controller or reader with standard Wiegand output. It uses the Atmel MCU, which provides a stable performance. Low power circuitry extends device life. SK6-X provides up to 600 users. It supports multiple access modes (Card only, PIN only, Card + PIN, simultaneous Card/PIN). It can read 125KHz EM and HID for low frequency, 13.56 MHz Mifare tokens, cards and tags for high frequency.



Datasheet - SK6-X (Proximiy+HID+Mifare) Contactless SMART Card Reader









Features

  • Waterproof, conforms to IP66
  • 600 user support
  • The LED can be controlled by external control panel with 2 extra cables.
  • One relay, keyboard programmer
  • Card Type: 125KHz EM card, 125KHz HID card and 13.56Mhz Mifare Card
  • Pulse mode, Latch mode
  • PIN length: 4 ~ 6 characters
  • Wiegand 26 ~ 37 bit input and output
  • Can be used as Wiegand reader with LED & Buzzer output
  • 2 devices can be locked for 2 doors
  • 12~28V AC/DC
  • Built-in LDR (light dependent resistor) for tamper protection
  • User card registration in block form
  • Tri-colour LED status indicator
  • Backlit keypad
  • Resistant to low temperatures (-40℃)
Feature Description
Supported Chips Proximity, HID ve Mifare
Operating Frequency 13.56Mhz
Maximum Reading Distance 6 cm
Normal User 598
Operating Voltage 12 ~ 28V DC
Dimensions L150xW51xH23mm
Weight 600 g
Nem 10% RH ~ 98% RH
Operating Temperature -40°C to 60°C

It is not suitable for direct use by end users who do not have detailed technical knowledge and equipment.
