Sample RFGate RFID Jewellery Tag (RFG100)

Sample RFGate RFID Jewelry Tag

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.
Sample RFGate RFID Jewellery Label
RFGate Sample RFID Jewellery Tags are powered by the Monza 5 chip with RFGate's volume-oriented structure. It is a product produced for the jewellery industry.

Complete your projects quickly and reliably with RFGATE, the first class UHF RFID tags.

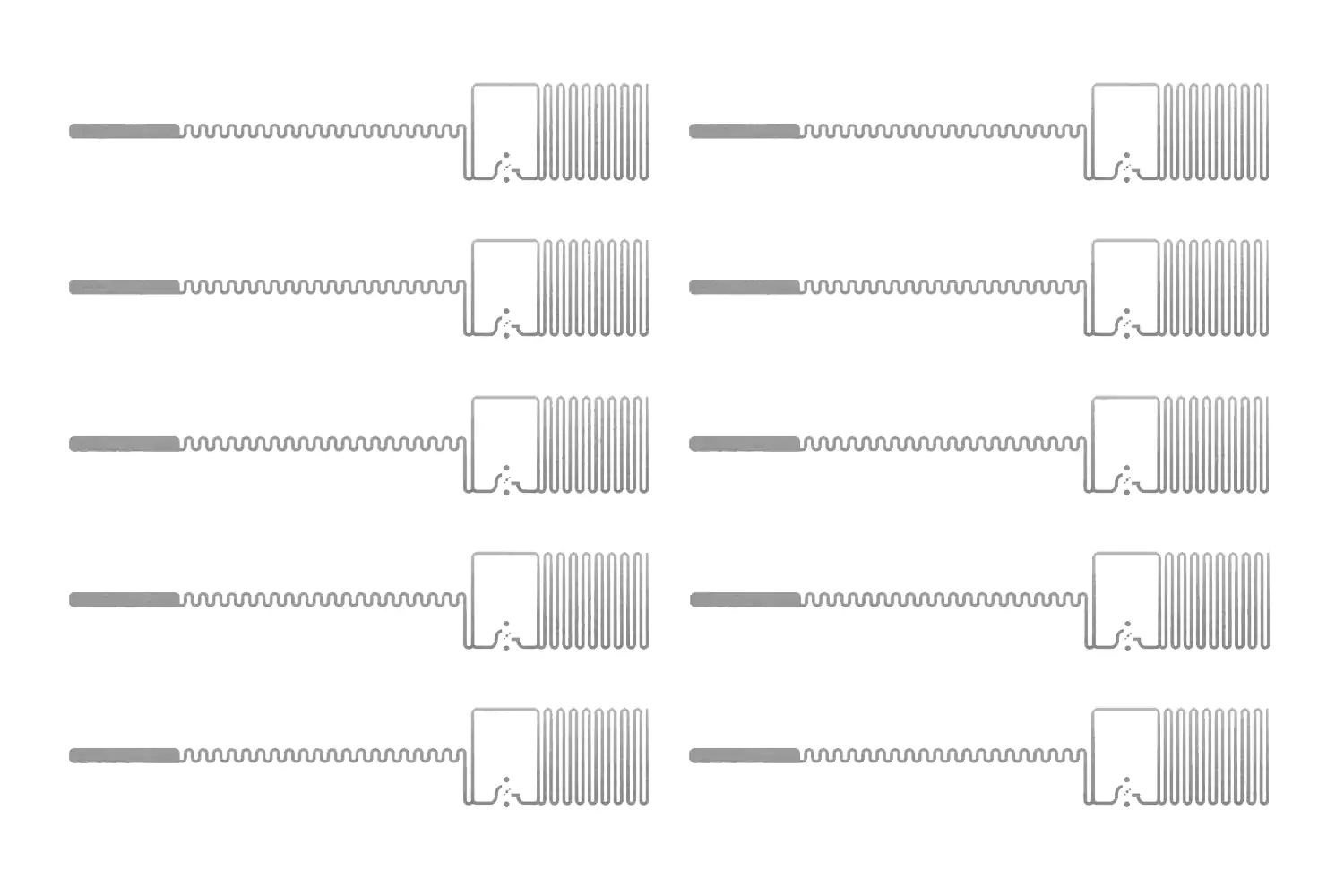

RFGate T50j RFID Jewellery Tag - 5pcs

It is powered by the Monza 5 chip with RFGate's volume-oriented structure.
It has reached the highest levels of read and write performance with the EPCglobal Class 1 Gen 2 (ISO 18000-6C) protocol.
It operates in the range of 860-960 MHz.
EPC 128 bits; Unique TID 48 bits; Tag dimensions User Memory 512 bits memory, T50j can be read from 5 metres with a suitable reader and antenna.
 Gold, silver, fabric, wood, valuables, etc.
Designed in 67 x 27 mm dimensions.
It operates between -20°C and +80°C.
It has a low power operating principle for both reading and coding.
It has a special security feature for cloning and copying attempts.

RFGate T56 RFID Jewellery Tag - 5 Pieces

It is powered by the Monza 5 chip with RFGate's volume-oriented structure.
It has reached the highest levels of read and write performance with the EPCglobal Class 1 Gen 2 (ISO 18000-6C) protocol.
It operates in the range of 860-960 MHz.
EPC 128 bits; Unique TID 48 bits; Tag dimensions User Memory 512 bits memory, T56 can be read from 5 metres with a suitable reader and antenna.
 Gold, silver, fabric, wood, valuables, etc.
Designed in 120 x 45 mm dimensions.
It operates between -20°C and +80°C.
It has a low power operating principle for both reading and coding.
It has a special security feature for cloning and copying attempts.
Dear customers, the RFID tags you have examined are not encoded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.
