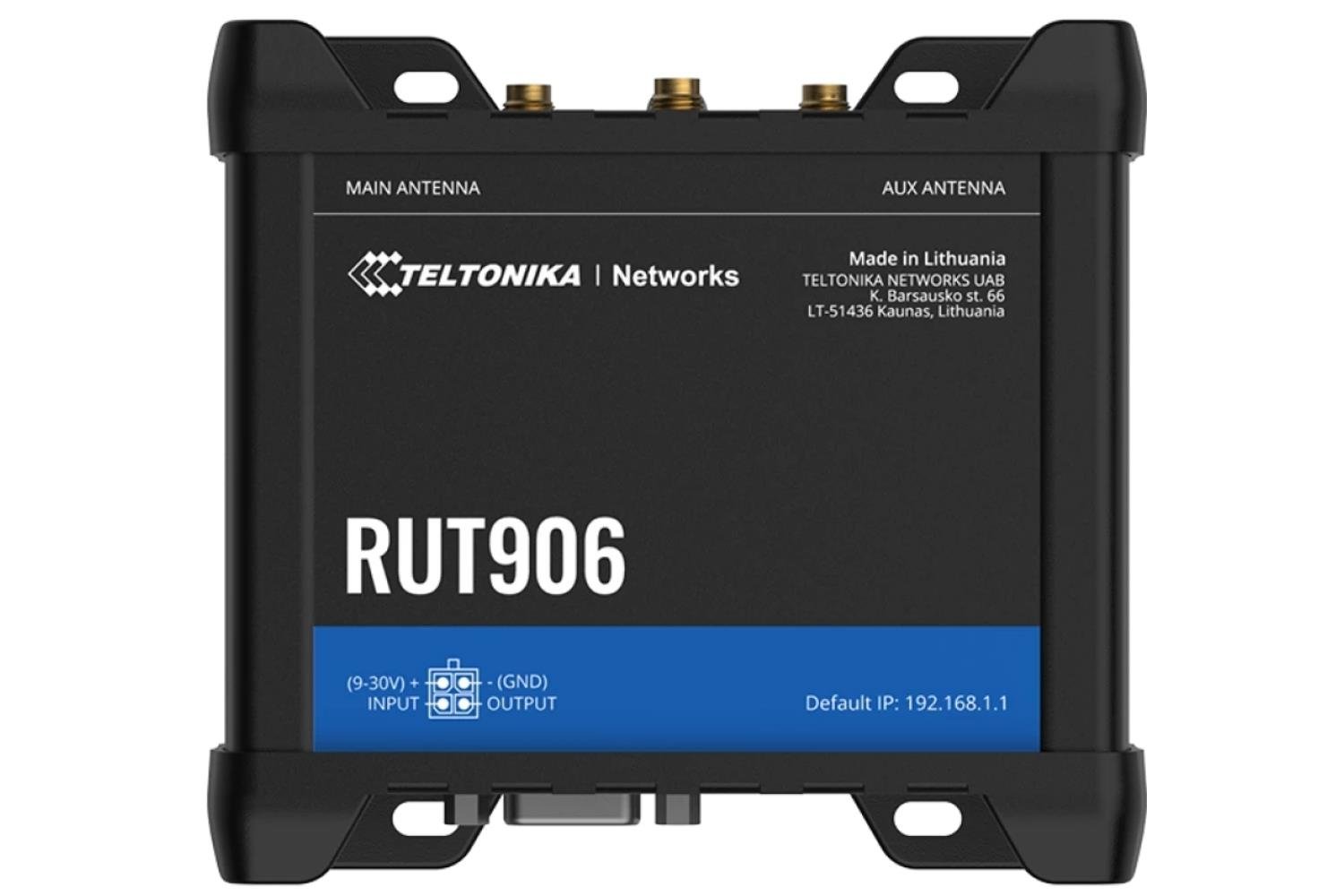

RUT906 4G LTE RS232/RS485 Router
RUT906 4G LTE RS232/RS485 Router

RUT906 4G LTE RS232/RS485 Router (RUT906)

Brand : TELTONIKA
Price : $239.00  + VAT

The cellular 4G router for industrial IoT applications supports serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with fault-tolerant features such as GNSS, Dual SIM, automatic failover, and backup WAN.
Add to Favorites
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend

RUT906 4G LTE RS232/RS485 Router

Teltonika RUT906 is a compact 4G LTE router designed for industrial IoT applications. The device is equipped with RS232 and RS485 serial interfaces, MQTT, BACnet, OPC UA protocols, I/O connections, and Ethernet support. Additionally, it provides location services and time synchronization with GNSS (Global Navigation Satellite System) support. The dual SIM card slot, automatic failover, and backup WAN features provide uninterrupted connectivity. RUT906 supports 4G LTE Cat 4 technology with download speeds of up to 150 Mbps and can be used as a Wi-Fi 2.4 GHz access point. The device has a total of 1 WAN and 3 LAN Ethernet ports. Advanced security features include support for IPSec, PPTP, L2TP, GRE, and OpenVPN. It also provides IoT platform integration with Modbus and MQTT protocols. The RUT906 is compatible with Teltonika's Remote Management System (RMS) for remote management and monitoring.



Feature Description
Connection Options TCP, USB
Mobile Module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Version Version 9
Status Monitoring IMSI, ICCID, operator, operator status, data connection status, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, transmitted/received data, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS Functionality SMS status, SMS configuration, HTTP POST/GET, SMS from E-MAIL, SMS to E-MAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-response, send/read SMS via SMPP
ABDSD Supports sending and reading Unstructured Supplementary Service Data messages
Operator Listing Operator black/white list (by country or individual operators)
SIM PIN Code Management SIM PIN code management allows setting, changing, or disabling the SIM card's PIN
Failover The router assigns the mobile WAN IP address to another device on the LAN
APN Automatic APN
Bridge Mode Direct connection between the mobile ISP and devices on the LAN (bridge)
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Connector 4-pin industrial DC power socket
Storage 128 MB, DDR2
Wireless QR Code Generator After scanning, the user will automatically join your network without needing to enter login credentials
Wi-Fi Users Up to 50 simultaneous connections
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
Supported Modes Client, Server
Supported Connection Types TCP
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Processor Mediatek, 580 MHz, MIPS 24KEc
