RFID PAPER LABEL (RUE4410.054)

Brand : RFgate
Discount Rate : %25 Discount
Price : $0.59  + VAT
Discounted : $0.44  + VAT

Passive labels are the most cost-effective labels. They do not have their own power sources and operate using the power of RFID readers. As the cheapest type, these labels are also the most widely used. The majority of RFID systems are built using passive labels, which have a very broad range across various sectors.

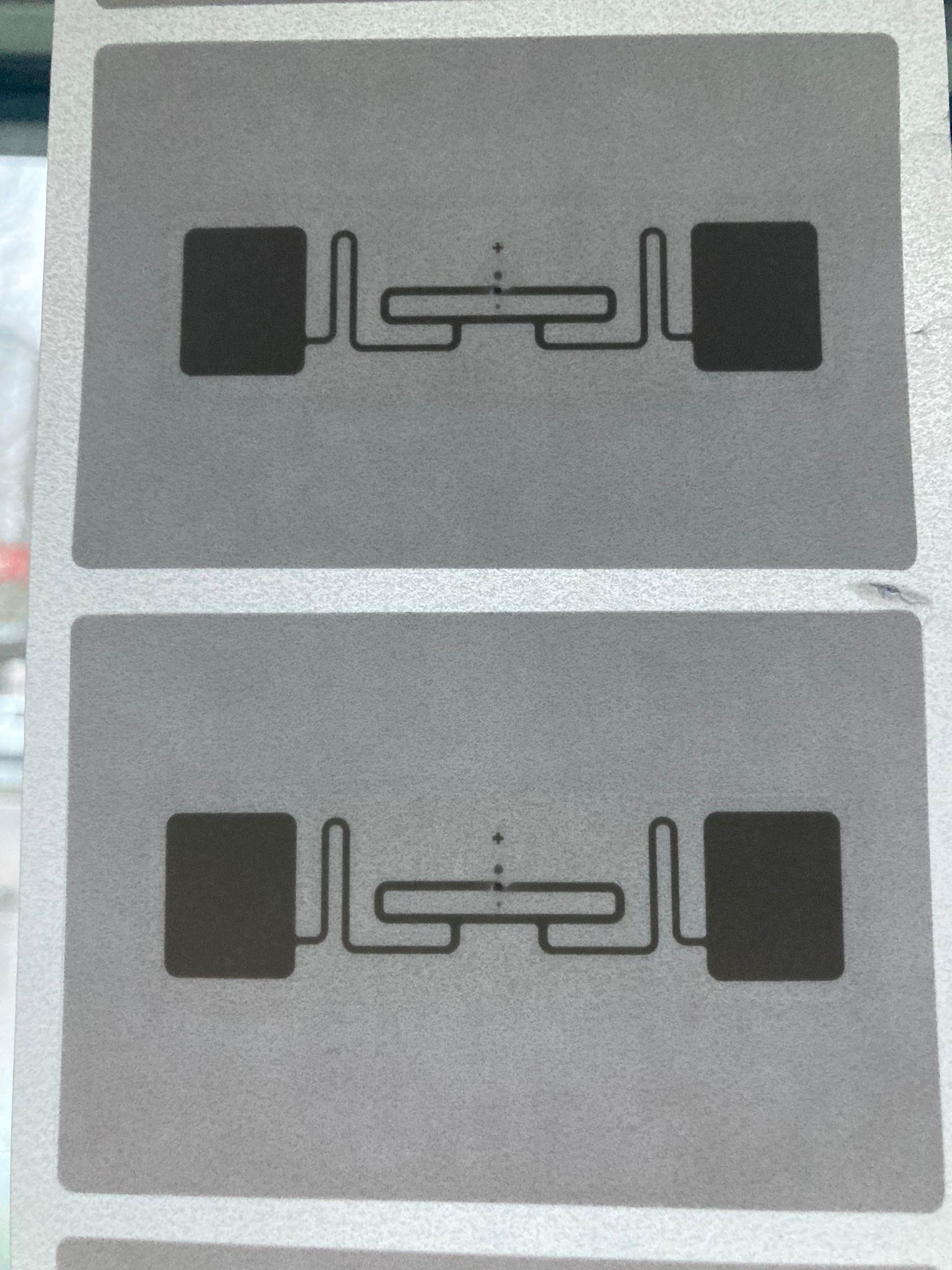

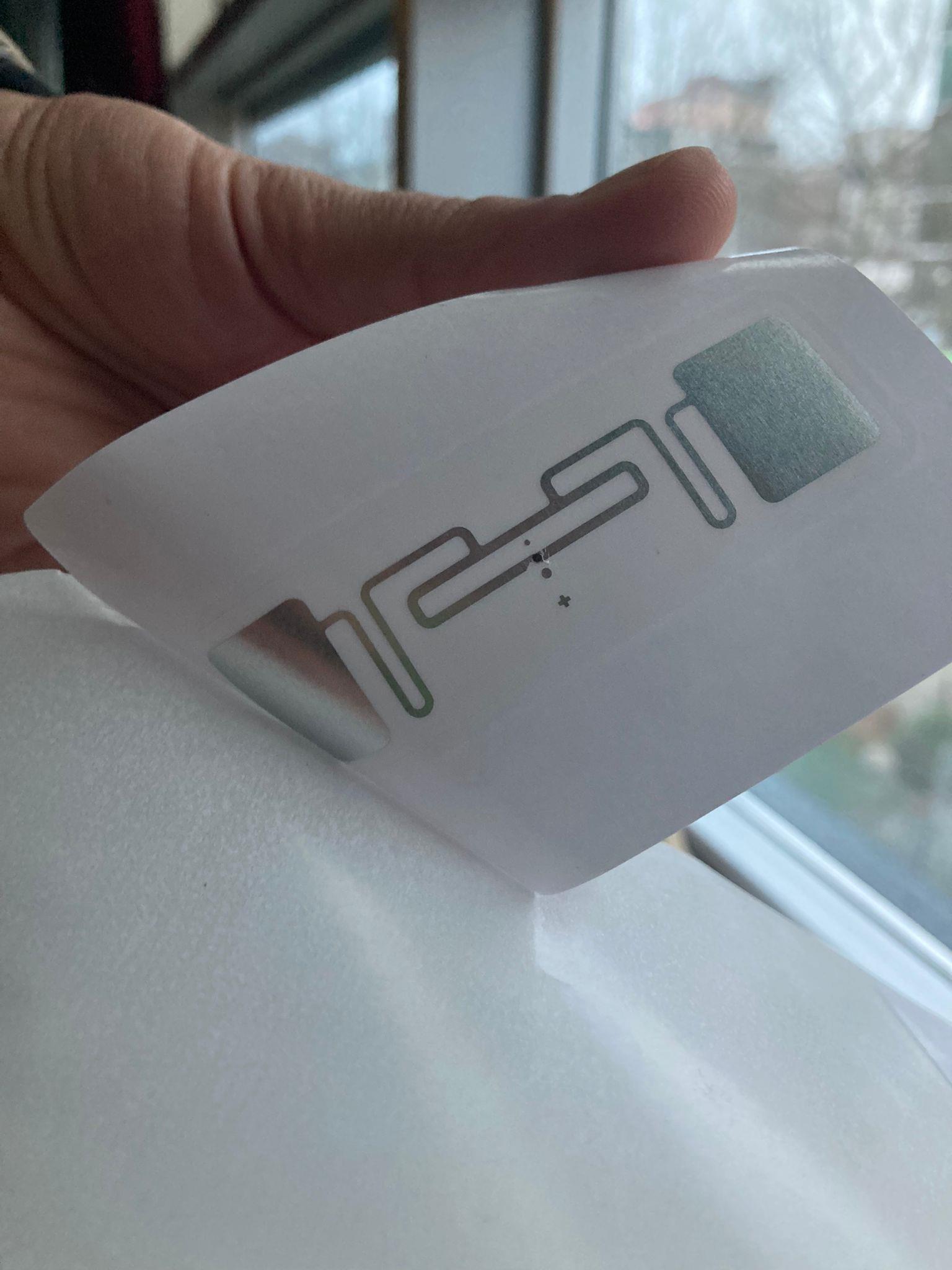

RFID PAPER LABEL



RFID PAPER LABEL is a narrower version of the high-performance, general-purpose Squiggle sibling designed for short RFID placement. RFL62 fillers are World Tag compatible, ensuring consistent operation across various frequencies in the Americas, Europe, the Middle East, Asia, and Africa. It features excellent performance with a short Higgs-3 core, 32-bit TID for authentication, and a 64-bit Unique TID for serialization applications, along with a rich feature set including an expandable EPC memory bank and 512 bits of user memory to prevent unauthorized viewing and modification of label data through password-protected read and write support.







Areas of Use



RFID PAPER LABEL is used in areas such as textiles, retail, apparel, asset tracking, warehousing, logistics, and tracking challenging materials and objects.



Features



  • Powered by Alien's volume-focused Higgs-3 chip.
  • Achieves the highest levels of read and write performance with EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) protocol.
  • Operates in the 860-960 MHz range.
  • With EPC 96 bits, User 512 bits, and TID 64 bits memory, RIM62 can be read from 3 meters with a suitable reader and antenna.
  • Can be used on wood, plastic, glass, and cardboard surfaces.
  • Designed in dimensions of 21.2 mm x 73.5 mm.
  • Operates between -40°C and +70°C.
  • Has a low power operating principle for both reading and coding.
  • Includes special security features to prevent cloning and copying attempts.



Dear customers, the RFID labels you have reviewed are not encoded. Coding and other technical processes are your responsibility. Please pay attention to this when placing your order. For detailed information, you can contact us.
Feature Description
Protocol EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency 860-960 MHz
Chip Alien Higgs 3
Memory EPC 96 bits, User 512 bits, TID 64 bits
Maximum Reading Distance 5 Meters
Applicable Surface Areas Wood, plastic, glass, and cardboard
Label Material Writable Paper Label (Thermal Transfer)
Dimensions 21.2 x 73.5 mm
Weight < 1 gram
Operating Temperature -40 °C to +70 °C
