RFGate Very Small Label on Metal 10x4mm (PCB T1004)

Brand : RFgate
Price : $0.88  + VAT

Passive tags are the most cost effective. Passive tags do not have their own power source. They are powered by RFID readers. These cheapest tags are the most widely used tags. The majority of RFID systems are created with passive tags. It has a very wide range on a sector basis.

RFGate Metal Top Very Small Label 10x4mm

RFGATE metal on extra small label 10x4mm



Datasheet - RFGate Metal Top Very Small Label 10x4mm







Areas of use

RFGate Metal Top Ultra Small Tag is an rfid tag very suitable for use in tracking laptops, servers in IT, vehicle tracking identification and other small metal gadgets.

Features & Benefits

It is powered by RFGate's Alien Higgs-3 chip with volume oriented structure.
It is a very small RFID tag designed for use in many applications where it is necessary to fit into smaller spaces to track small metal assets.

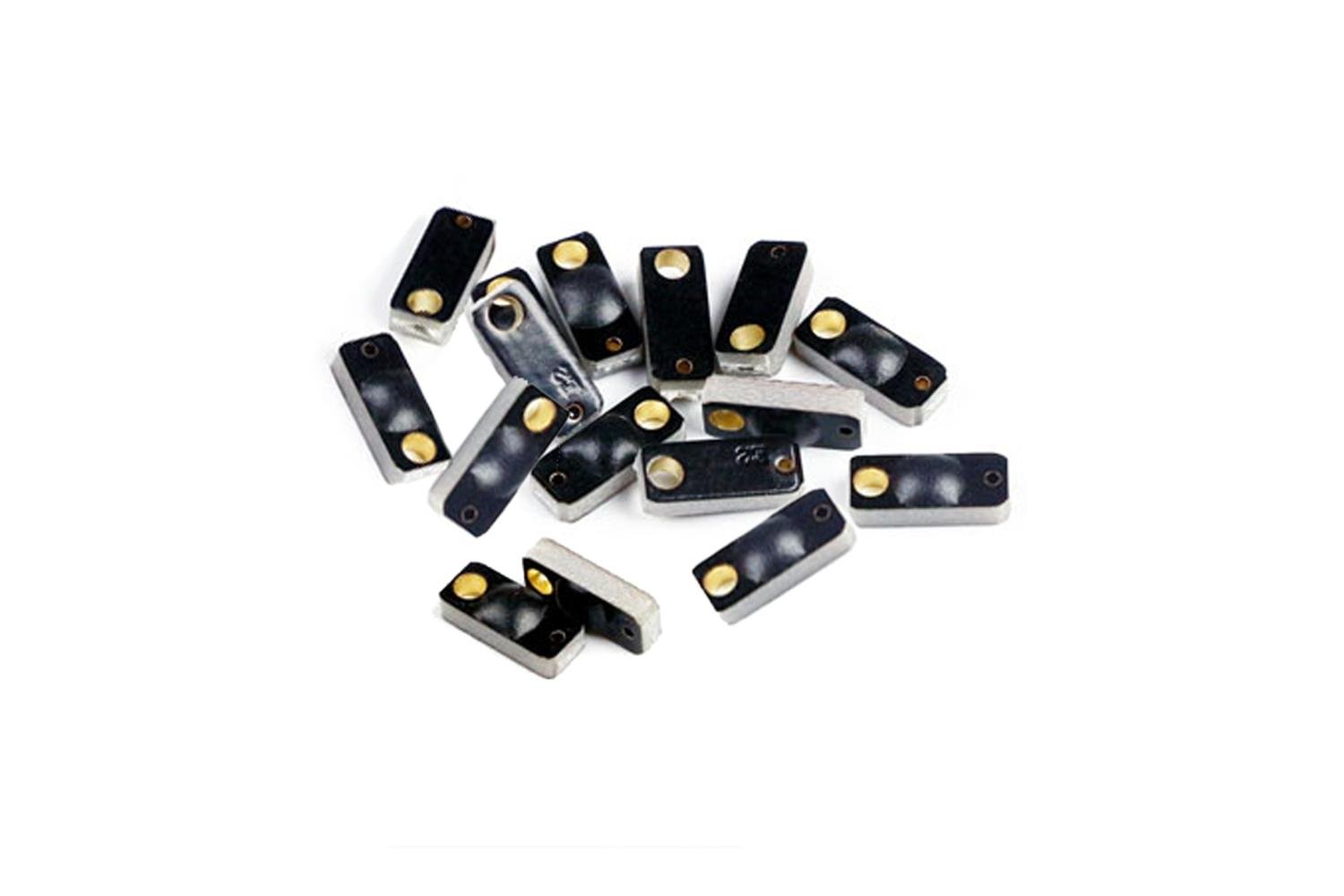

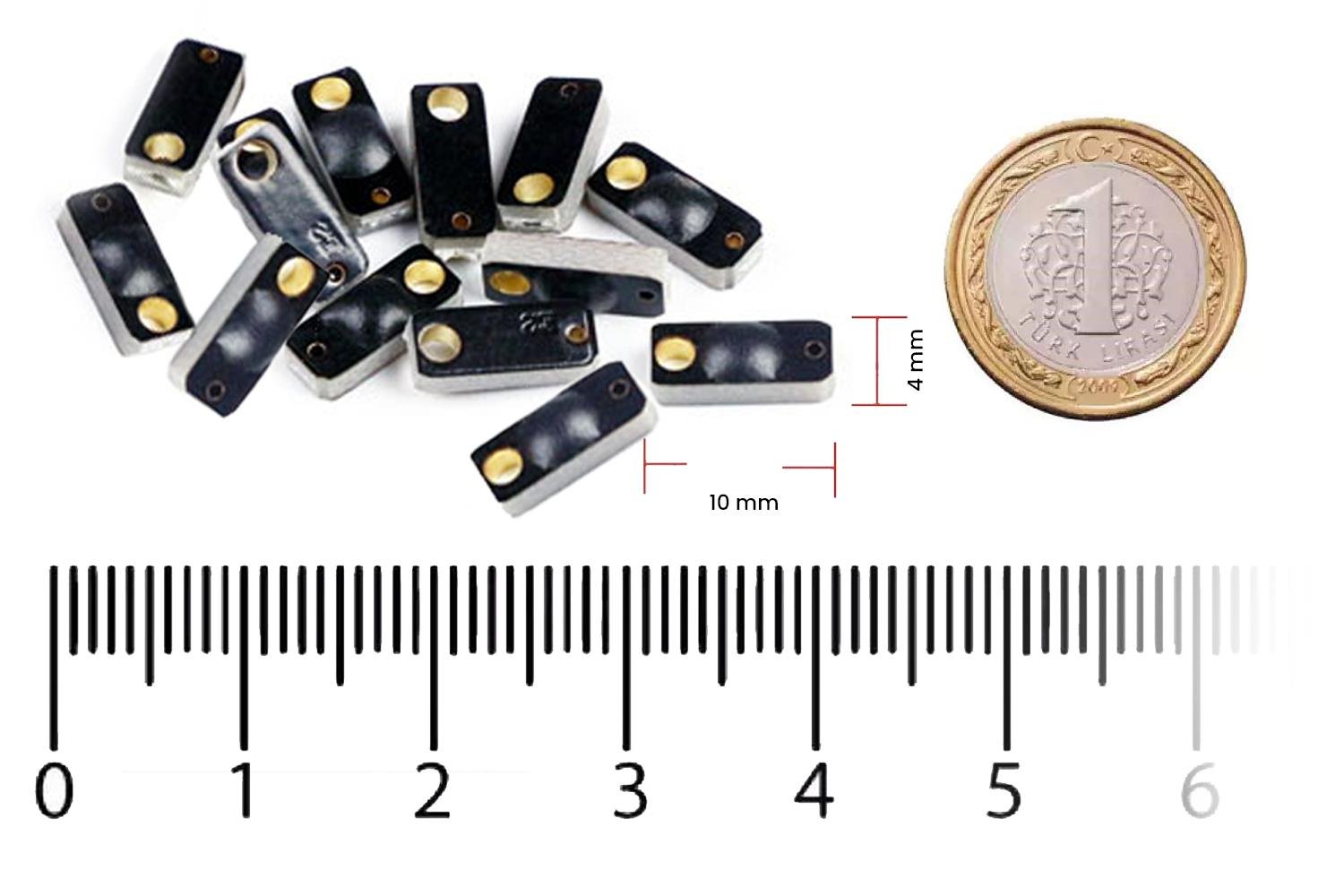

Metal top label, 10x4mm in size, 0.5g in weight.
It operates between -20°C and +100°C.

Dear customer, the RFID tags you have examined are not encoded. Coding etc. The technical operation is your responsibility. Please keep this in mind when ordering. For detailed information please contact us.

Ozellik Açıklama
Protocol EPC Global Gen2, ISO/IEC 18000-6C
Çalışma Frekansı (AB)865~868MHz / (ABD)902~928MHz
Çip Alien Higgs-3
Hafıza EPC 96 bit (480 bit'e kadar), KULLANICI 512 bit, TID64 bit
Uygulanabilir Yüzey Alanları Metal Yüzeyler
Label Material FR4(PCB)
Boyutlar  10x4mm.
Ağırlık 0.5 grams
Çalışma Sıcaklığı -20℃ ILA +100℃
