RFGate RGL12-10505 UHF RFID Library Tag (RGL2648122)

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.

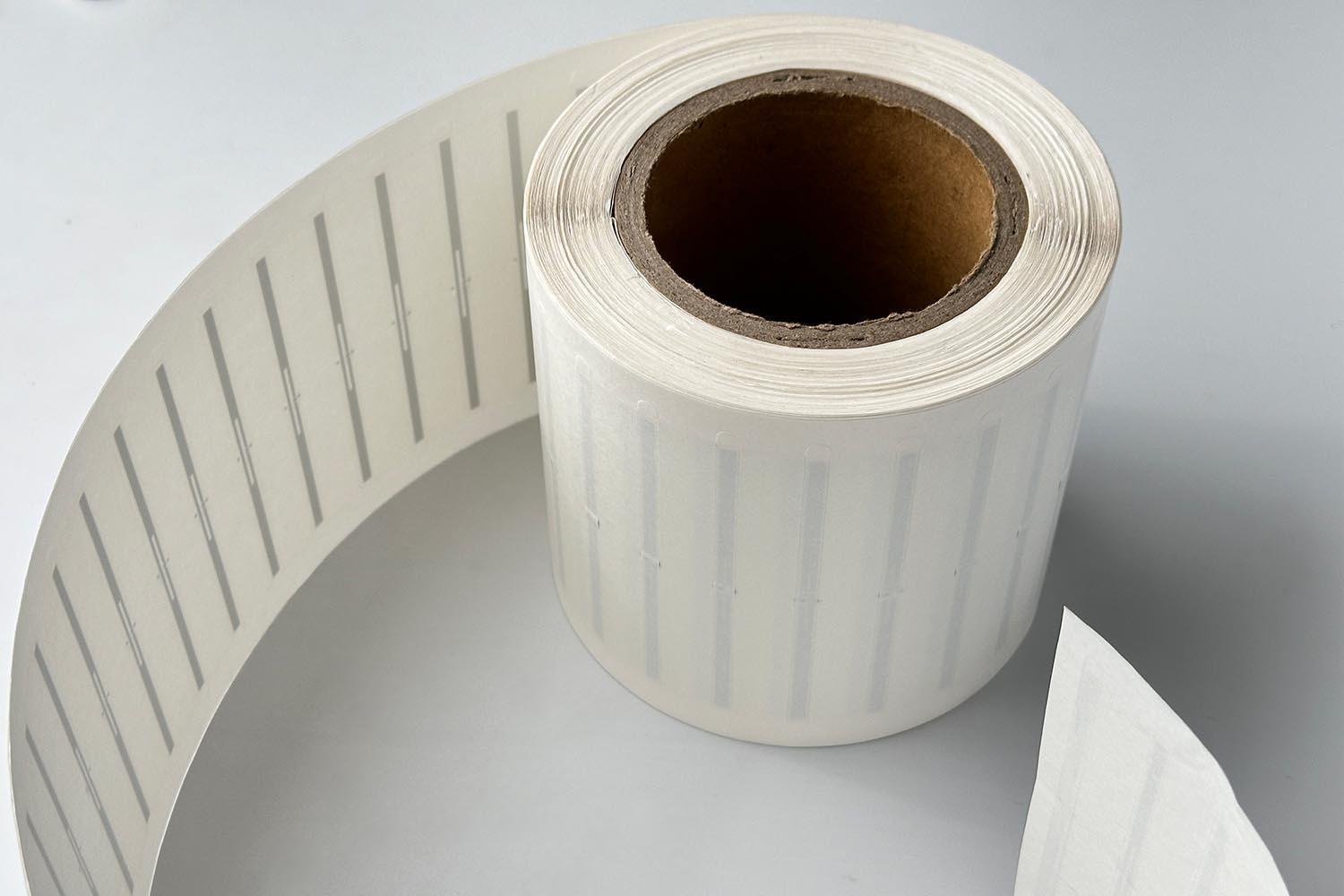

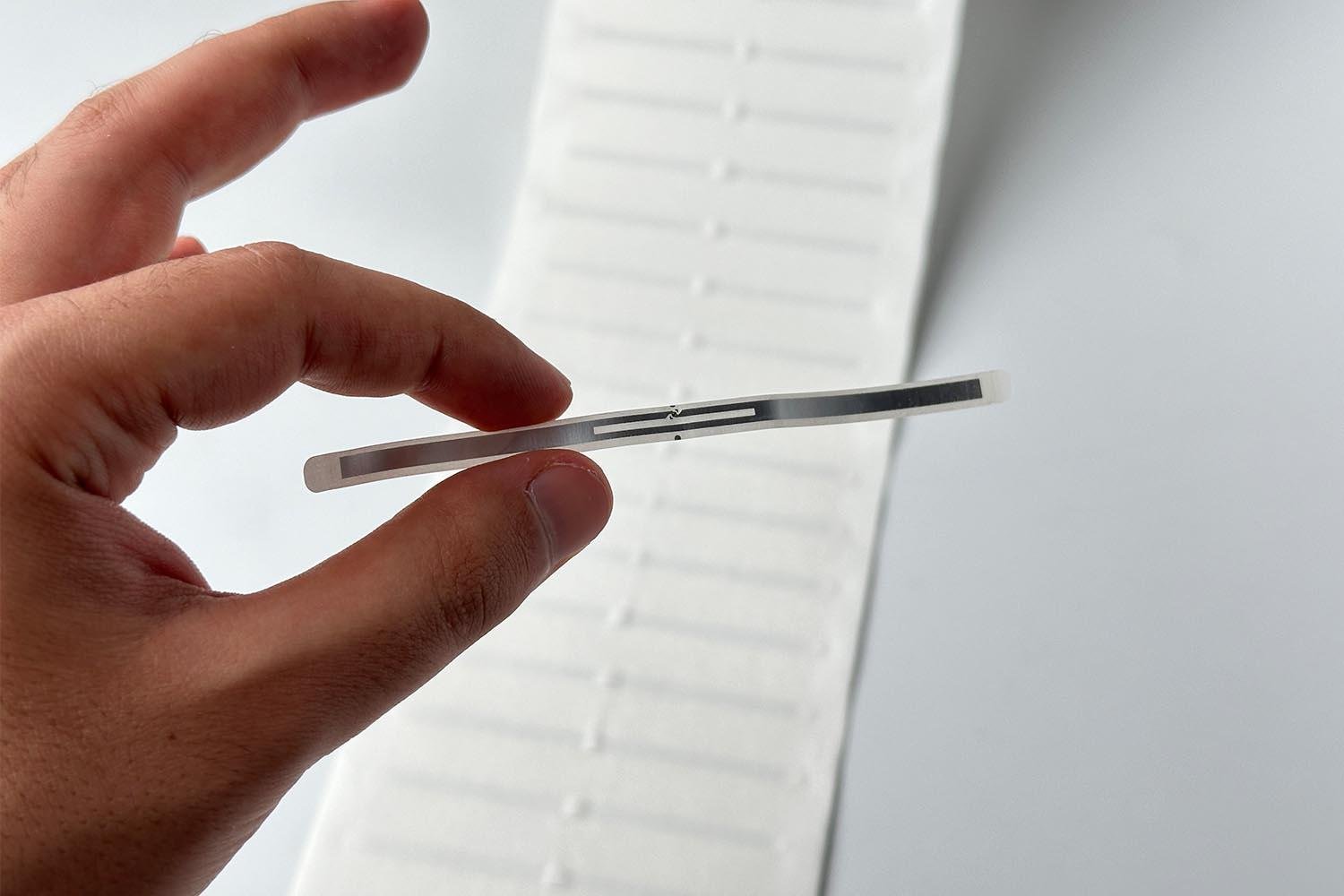

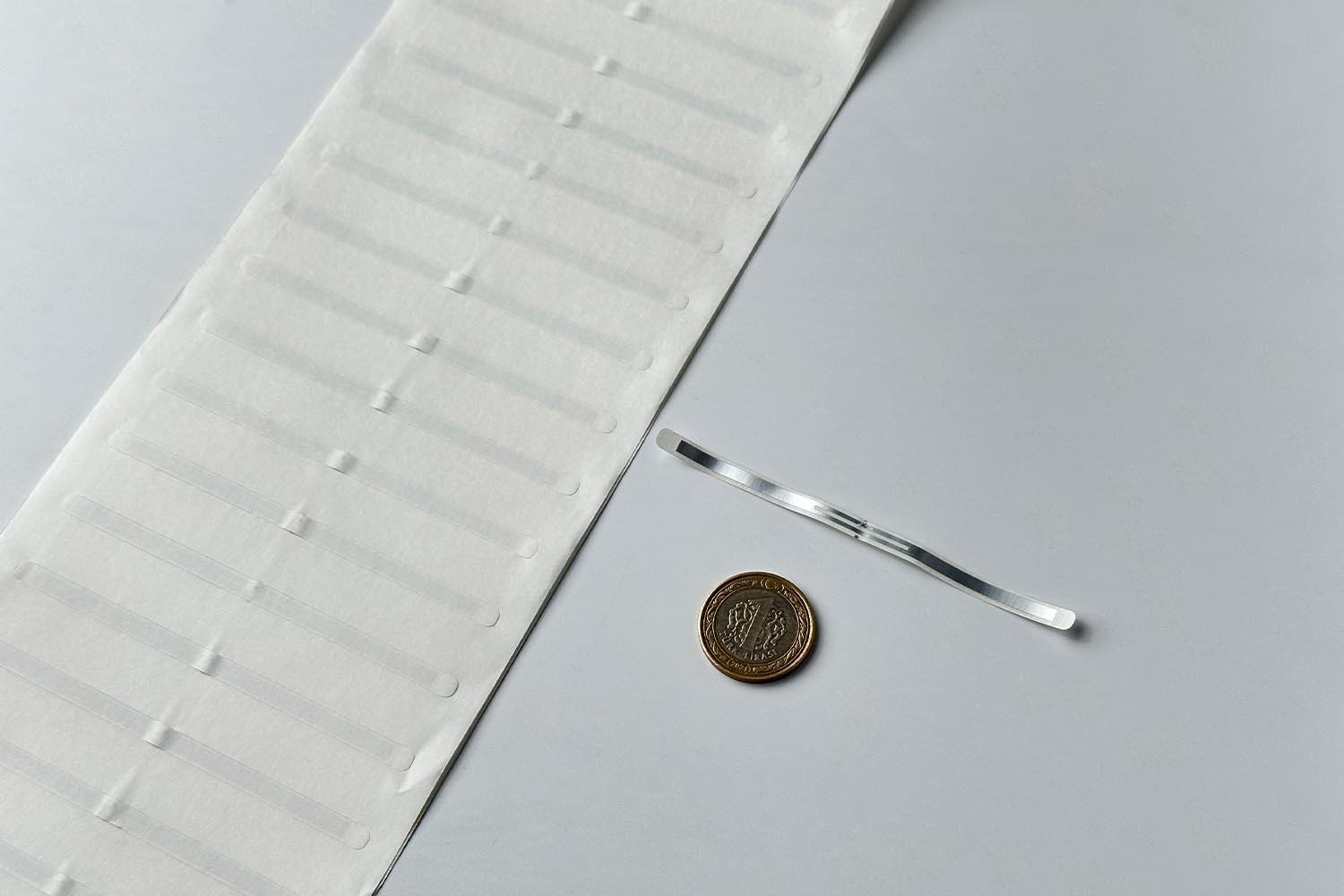

RFGate RGL12-10505 UHF RFID Library Tag

RFID library tags can store identifying information such as the title or material of a book and can easily stick to the book. The tag is actually the electronic identifier that stores the information in the book and contains an electronic chip and a small radio antenna that stores a single code and number, and next to this fixed code is usually considered a memory area for Users. By sticking a label on the book, it actually becomes an electronic identification card of that book. RFGate RGL12-10505 UHF RFID Library Tag is used in areas such as library, file management, archive management, inventory, warehouse and logistics.

Features

• It is powered by Monza 5 chip with RFGate's volume-oriented structure.
• It has reached the highest levels of read and write performance with the EPC Global Class1 Gen2 ISO 18000-6C protocol.
• It operates in the range of 860-960 MHz.
• RFGate T120, which has EPC 128 bits; TID 48 bits; User Memory 0 bits memory, can be read from 10 metres with a suitable reader and antenna.
• It can be used on wooden, plastic, glass and cardboard surfaces.

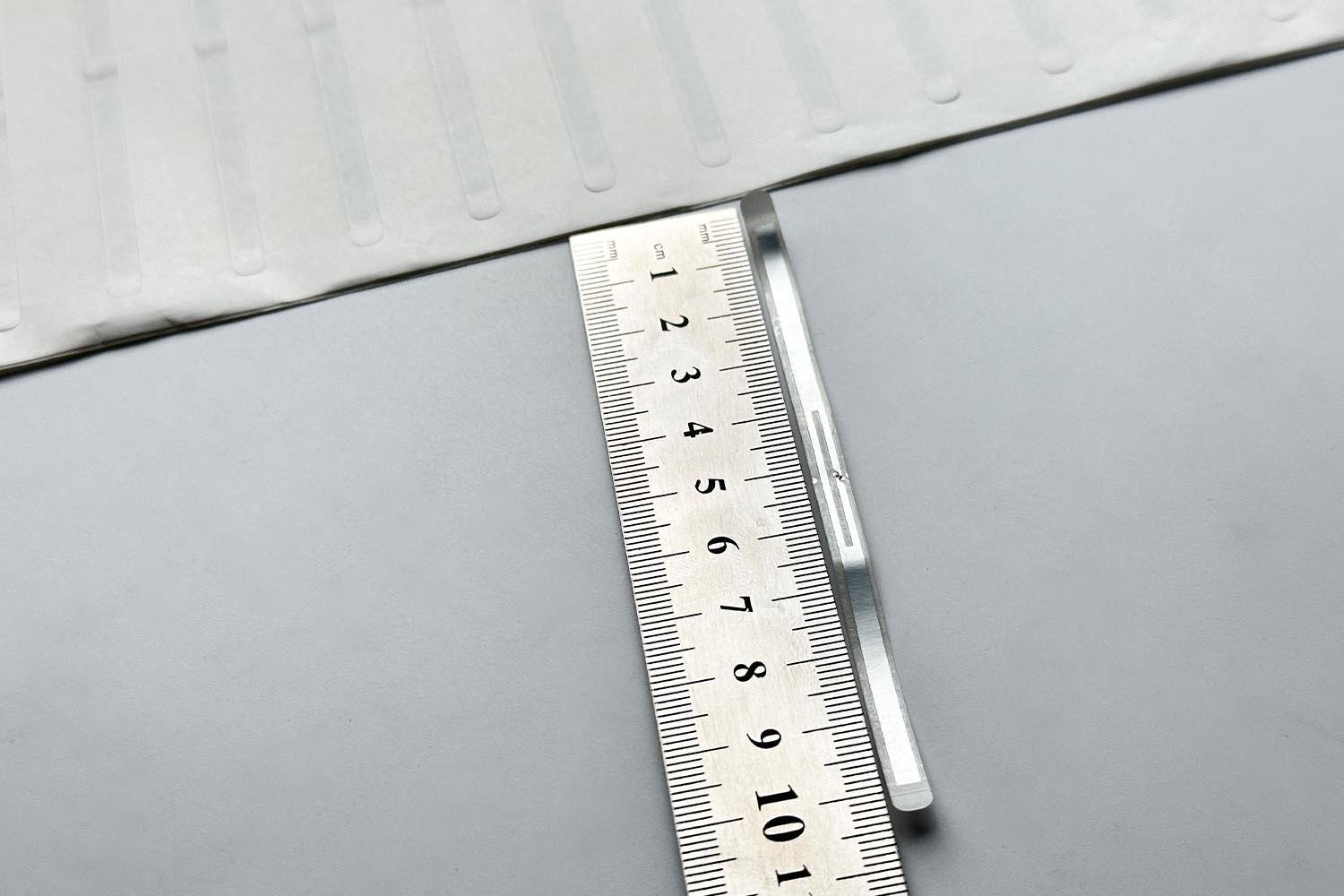

• It is designed in 230 mm x 4,5mm dimensions.
• It operates between -20°C and +80°C.
• It has a low power operating principle for both reading and coding.

Dear customers, the RFID tags you have examined are not coded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.
