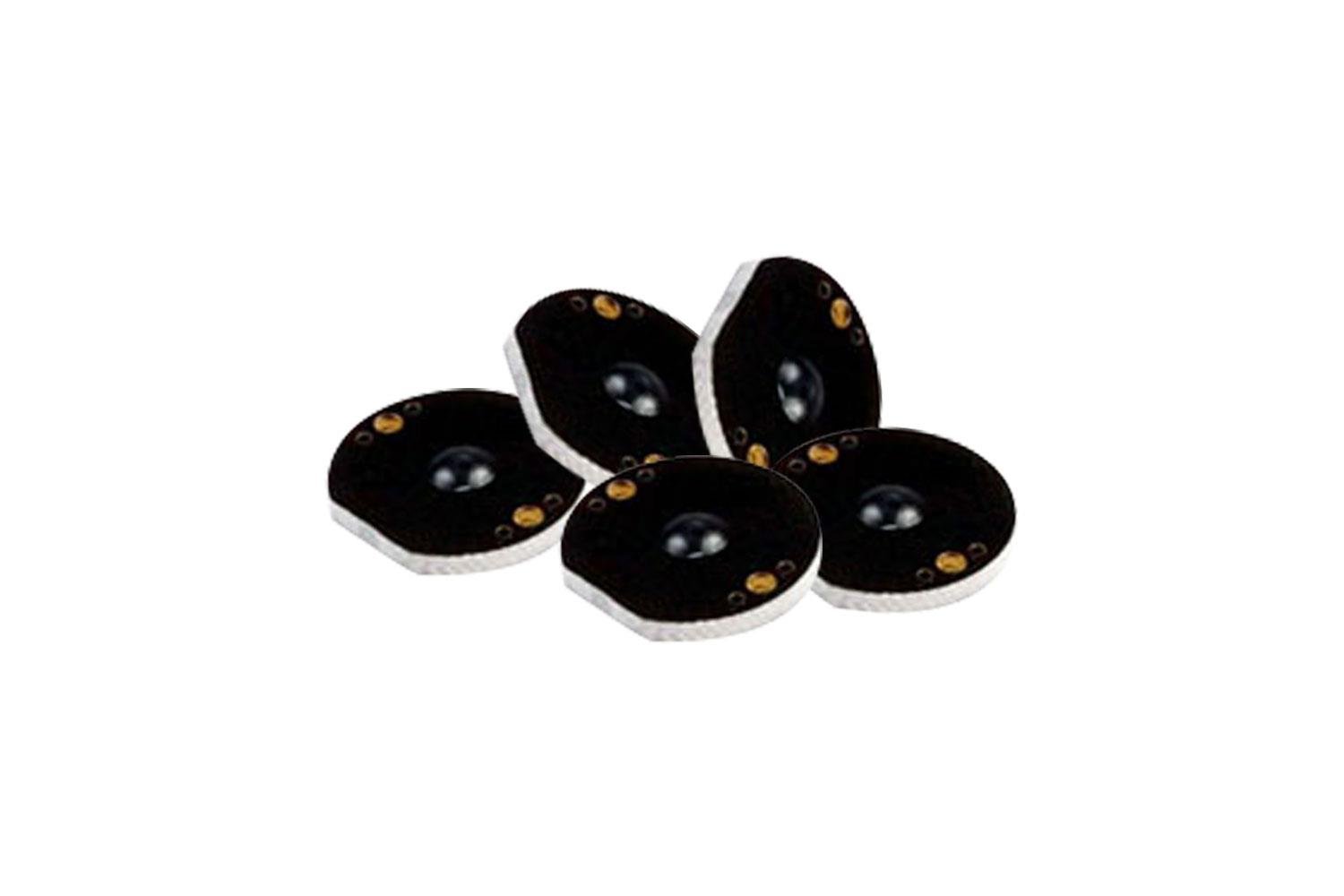

RFGate Reading Range High RFID Tag Dia 20mm (PCB TD20)

Brand : RFgate
Price : $1.04  + VAT

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.





RFGate Reading Range High RFID Tag Dia 20mm



RFGATE High Read Range RFID Tag Dia 20mm



Datasheet - RFGate High Read Range RFID Tag Dia 20mm







Areas of Use



RFGate Read Range High RFID Tag is used in a wide range of automatic vehicle identification transportation applications, including electronic toll collection, airports and ground transportation management systems, parking access and security access applications.



Features



  • RFGate's volume-oriented structure equipped with Alien Higgs-3 IC chip providing industry-leading performance an anti metal rfid tag.
  • The PCB Tag offers a read range of up to 3.2 meters and 512 bits of User read/write memory.
  • Manufactured with FR4/PCB materials for high reliability and durability in any environment.
  • Diameter 20 mm and thickness 2.8 mm
  • It operates between -40°C and +100°C.



Dear customers, the RFID tags you have reviewed are not encoded. Coding etc. technical processes belong to you. Please pay attention to this when ordering. You can contact for detailed information.

Feature Description
Protocol  EPC global Gen2,ISO/IEC 18000-6C
Operating Frequency (EU)865~868MHz / (US)902~928MHz
Chip Alien Higgs-3
Memory EPC 96 bits (up to 480 bits), USER 512 bits, TID64 bits
Applicable Surface Areas Metal Surfaces
Label Material  FR4(PCB)
Dimensions  Diameter 20mm, (Hole: D2mm*2)
Thickness Without 2.0 mm internal hump, with 2.8 mm internal hump
Weight 1.0 gram
Operating Temperature -40℃ to +100℃
