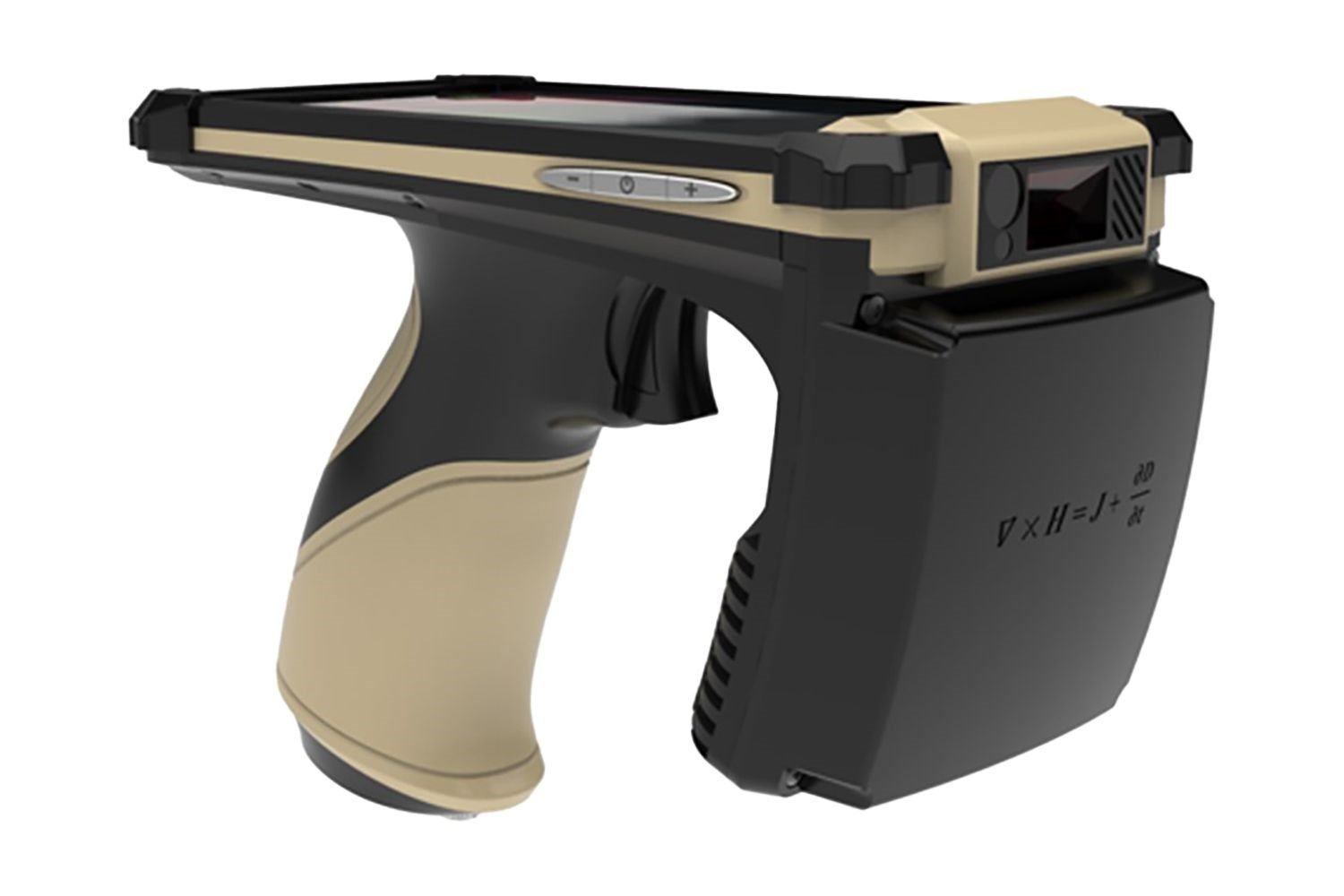

RF500 UHF Mobile RFID Handheld Terminal / Android

RF500 UHF Mobile RFID Handheld Terminal / Android (1314)

Brand : RFgate
Price : $1,100.00  + VAT

RF500 UHF Mobile RFID Handheld Terminal / Android







Product Features
Areas of Use
Inventory, Power patrol, personnel, livestock, accessories, clothing retail
Mechanical Parameters
Ingredients
Aviation Aluminium, PC+ABS
Dimensions
167*82*129mm / Coupling 111*38*47mm
Weight
580g (including battery/standard version)
System Specifications
Operating System
Android 6.0
CPU
Quad-core Cortex-A17/1.8GHz
GPU
ARM Mali-T764/ High performance 3D engine
RAM+ROM
2G+32G, 4G+64G optional
LCD
5.0 inch/ 1280*720/IPS/180° viewing angle
Touch Screen
1.1 mm thick tempered glass/10 point touch/glove operated
Hot Swapped Battery
Pistol-style hot-swappable battery system
Buttons
Power / Volume:3 ALPS buttons / Operating force 2.5N / Operating life 1 million cycles
Scan Trigger
OMRON button / Operating force 1.27N / Operating life 10 million cycles
Power
6000mAh charged Ii-polymer battery
Card Slots
Micro SIM card slot*1 / TF card slot*1
USB Interface
Micro USB/MOLEX connector /Working life 10,000 cycles
Sound
Supported
Vibration
10mm / Button style
Charge Indicator
Bicolour LED
Wireless Connection
Wi-Fi
IEEE802.11b/g/n
Bluetooth
Bluetooth 4.0
4G
Supported Optional
Working Conditions
Operating Temperature
-20~+60
Storage Temperature
-30~+70
Nem
5% BN ~ 95% BN (non-condensing)
Protection Class
IP64
Safety Fall Height
1.6 m / 5.25ft
UHF Specifications
Engine
Impinj Indy R2000
Frequency
865~868MHz / Optional 902~928MHz
Output Power
0~33dbm
Highest Inventory Speed
500pcs/s
UHF Antenna
4dBi air dielectric antenna
Reading Distance
10m
