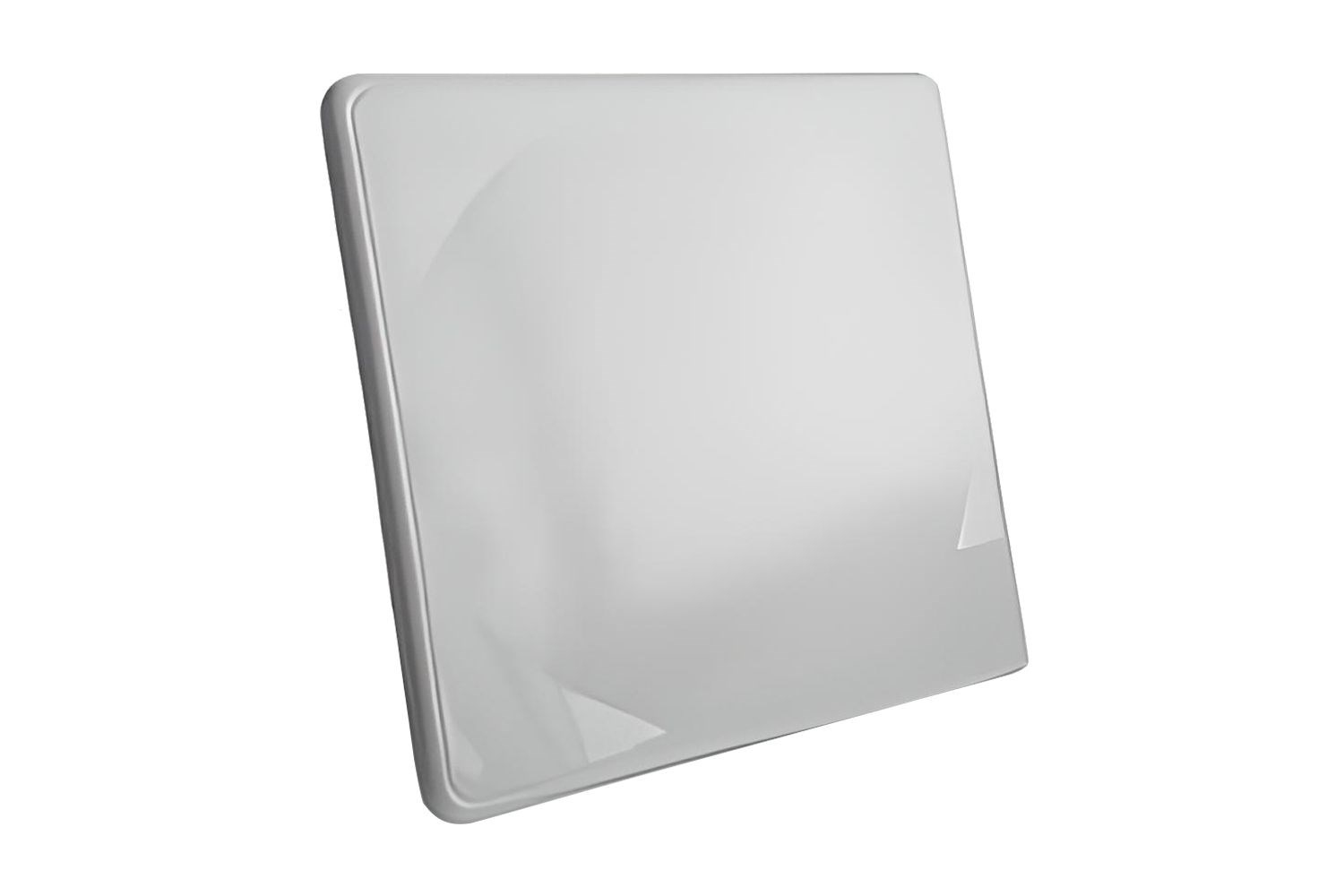

RD42 10 DBI RFID Antenna with Integrated UHF RFID Reader

RD42 10 DBI RFID Antenna with Integrated UHF RFID Reader (RD11980042)

Brand : RFgate
Price : $370.00  + VAT

 RD42 10 DBI RFID Antenna with Integrated UHF RFID Reader







Electrical Properties
Operating Frequency 865 - 868 MHz
Polarisation Linear
Fare-Field 3dB
Beamwidth
72° XZ, 23° YZ
VSWR
VSWR <=1.5
Input Impedance 50
Max. Input Power 50
F/B Ratio 20 dB
Mechanical
Connector Type N Female
Dimensions 30 x 30 x 2 cm
Environment
Operating Temperature -40° to +60°C
Features
Input Voltage DC 3.5V – 5 V
Standby Mode Current <80mA (EN Highest Level)
Sleep Current <100uA (EN Lowest Level)
Start Time <80mS
Operating Temperature - 20 °C - + 70 °C
Operating Humidity < 95% ( + 25 °C)
Air Interface Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Output Power 0-26 dBm
Output Power Sensitivity +/- 1dB
Output Power Flatness +/- 0.2dB
GPIO 2 in 2 out (3.3V TTL Level)
Baud Rate 115200 bps (Default and Recommended) 38400bps
Cooling Air cooling (No need for External Cooler)
