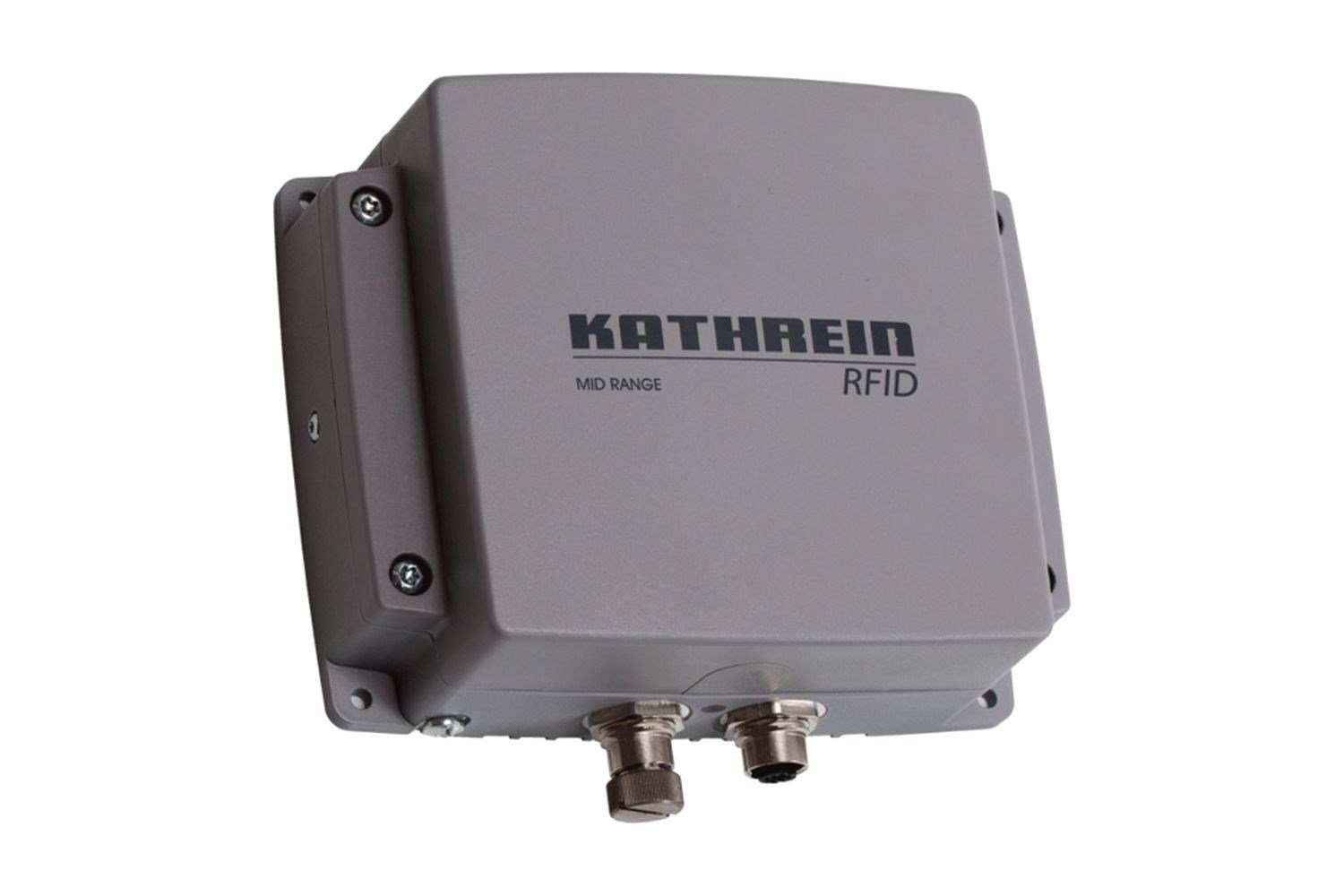

KATHREIN M-ARU-ETH-E6 RFID Reader with Built-in Antenna

The Kathrein M-ARU-ETH-E6 Series Integrated Reader is equipped with a highly integrated RFID UHF sensor based on the Kathrein Mid-Range Antenna Series and the Kathrein industrial reader platform. The device has a Power-over-Ethernet and a serial communication interface plus digital GPIOs (inputs/outputs). The supply voltage optionally can be served over Power-over-Ethernet or local. Both active and passive RFID transponders can be used with this device for reading and writing.

Technical Specifications

Protocol	EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency	ETSI (865-868 MHz)
Transmission Power	+24.25 dBm
Max. Purchasing Power	-60 dBm
Max. Reading Distance	up to 1.5 m (4.9 ft)
Data Interface	Ethernet, 10/100, MBit / s, RS-232 115200 veya 230400, 8N1
GPIO	3 in, 3 out
Power Supply (POE)	Mod A: Endspan
Power Supply (External DC Power)	24 V DC Power Supply
Antenna Ports	N/A
Dimensions	156 x 139.3 x 63 mm
Weight	1,1 kg
IP Class	IP 65
Operating Temperature	-20 ° ila + 55 ° C
Host API	.NET, Linux X86, AMD64, ARMv4T, ARMv7A, Java (Beta)
Demo Software	ReaderStart
