INVENGO XC-RF861 UHF RFID Reader (T500)

Name: INVENGO XC-RF861 UHF RFID Reader
Brand: INVENGO
Price: 35779.00 try

Brand : INVENGO

Price : $967.00 + VAT

Order via Phone

Add to Favorites

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Recommend

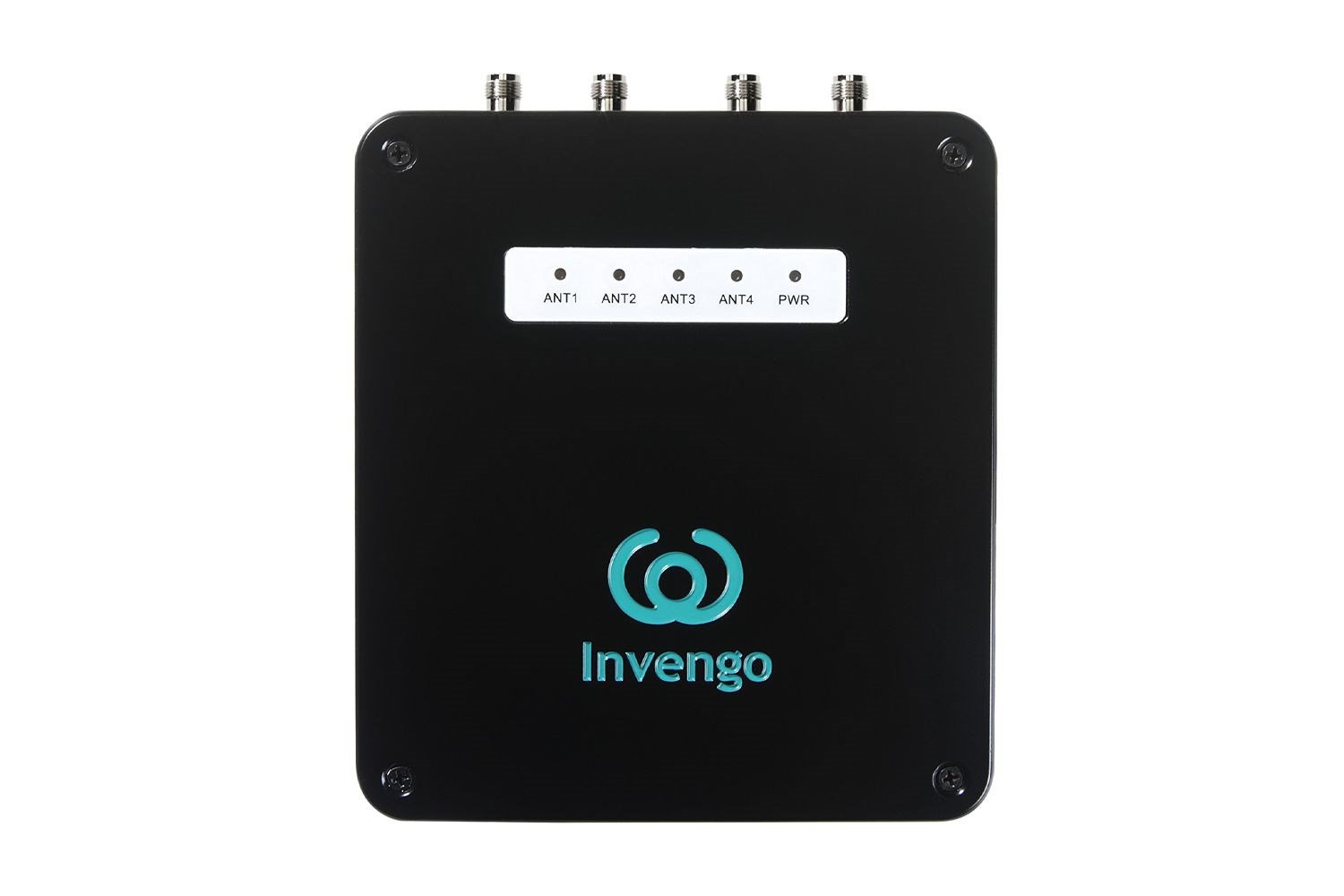

INVENGO XC-RF861 UHF RFID Reader

Invengo's XC-RF861 is a compact RAlIN RFID (UHF) reader that delivers excellent performance at an incredible value. The Linux NFC reader has a sleek design and is easy to install The XC-RF861 is Linux based, combining reliable reading with ease of programming and communication. It is suitable for applications in asset tracking, inventory management, and track and trace.

Technical Specifications

Dimensions	196 x 176 x 38 mm 7.71 x 6.92 x 1.5 in (Without Accessories)
Weight	Approx. 1 kg / 2.20 lb (Without Accessories)
Case Material	Aluminium Alloy
Operating Temperature	20˚C ~ 70˚C (-4˚F ~ 158˚F) Power Adapter -0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature	-30˚C ~ 75˚C (-22˚F ~ 167˚F)
Humidity Range	5%~95% RH, No Condensation
Adapter	ACGiriş 100V-240V 1.5A, 50-60Hz; DC Çıkış 24V ± 5%/2.5A
DC Power Supply	DC Input 10~30V(24V/2A Recommended)
Power over Ethernet	IEEE 802.3at
Power Consumption	Approx. 12W
Supported Protocols	EPC global UHF Class 1Gen2 / ISO 18000-6C
Supported Regions or Geographies	Australia (920~926), Brazil (902~907, 915~928), EU/ETSI (865~868), FCC (902~928), Hong Kong (920~925), Indonesia (923~925), Korea (917~920), Malaysia (919~923), New Zealand (921~928), Peru (915-928), Singapore (920~926), South Africa (915~919), Taiwan (922~928), Uruguay (916~928)
RS-232	Default Baud Rate 115200kps, 8 Data Bits, No Parity, 1 Stop Bit, No Flow Control
RJ45	Varsayılan IP 192.168.0.210
GPIO	Two Isolated Autocoupler Inputs (5C~12V); Two Isolated Optocoupler Outputs (High Level 5V, Low Level 0V); Two Relay Outputs (DC30V, 1000mA; AC125V, 500mA)
Label Data Rate	40kbps ~ 400 kbps
RF Output Power	9~30dBm (Step 1dBm)
Tag Memory Size	TID 512 bits, EPS 496 bits, User 64Kbits
Memory	128MB SDRAM, 256MB Flash
FCC ID	TQ4XC-RF861
Others	RoHs, CE
