H47 UHF PP RFID Tag (H3788004)

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.

H47 WRW UHF RFID Tag

H47 WRW UHF RFID Tag; EPC 96 bits, User 512 bits, TID 64 bits memory. H47 can be read from 5 metres with a suitable reader and antenna. It is used for logistics, transport, library, identification and tracking.

Complete your projects quickly and reliably with the first-class UHF RFID tags H47 WRW UHF RFID TAG.Datasheet Görüntüle

You can review our guide to help you find the right RFID Tag for your needs.

Features

• Powered by the Monza 5 chip.
• EPCglobal has reached the highest levels of read and write performance with the UHF Class 1 Gen 2 (ISO 18000-63) protocol.
• It operates in the range of 860-960 MHz.
• H47, which has EPC 96 bits, User 512 bits, TID 64 bits memory, can be read from 5 metres with a suitable reader and antenna.
• It is used on wood, plastic, glass and cardboard surfaces.

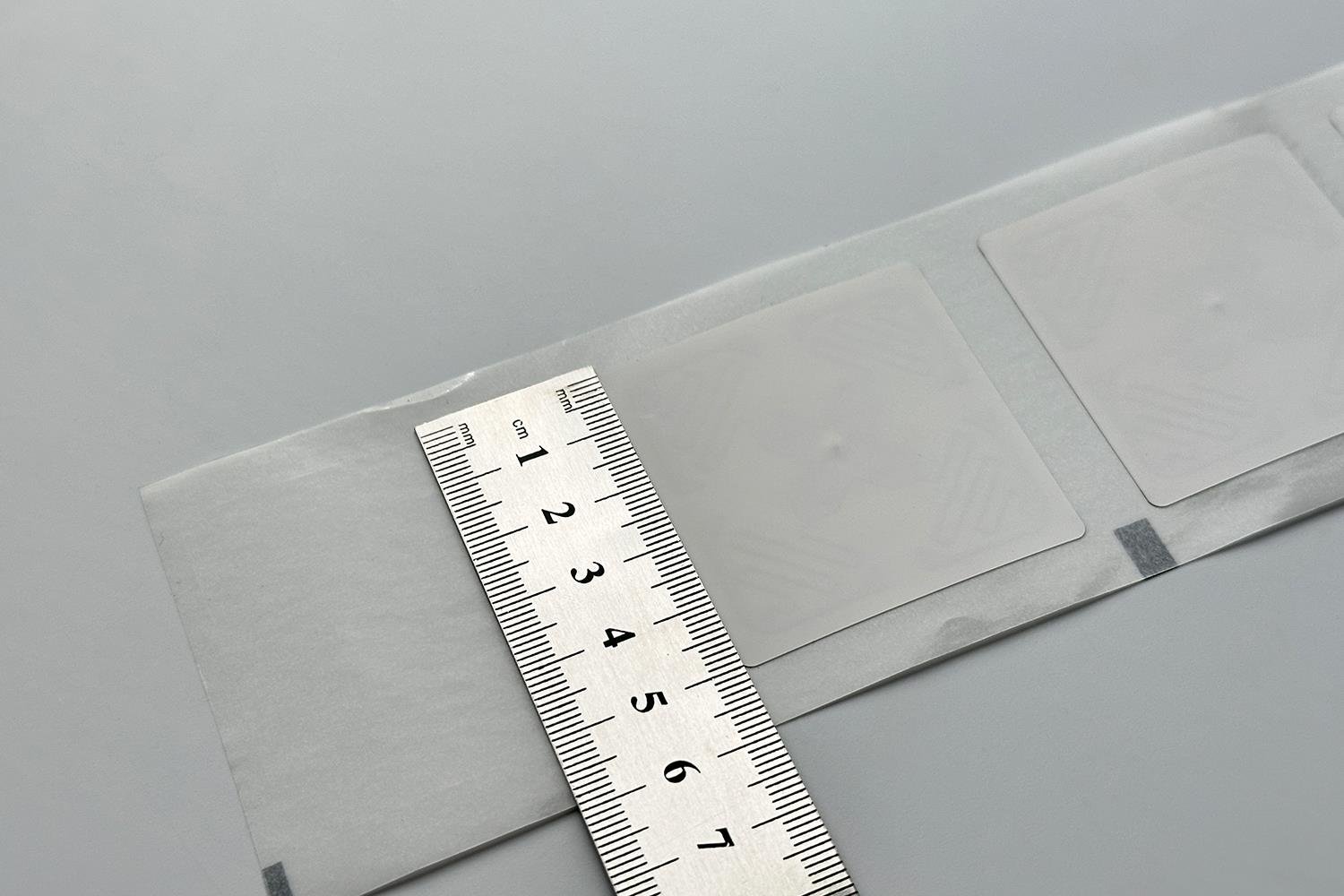

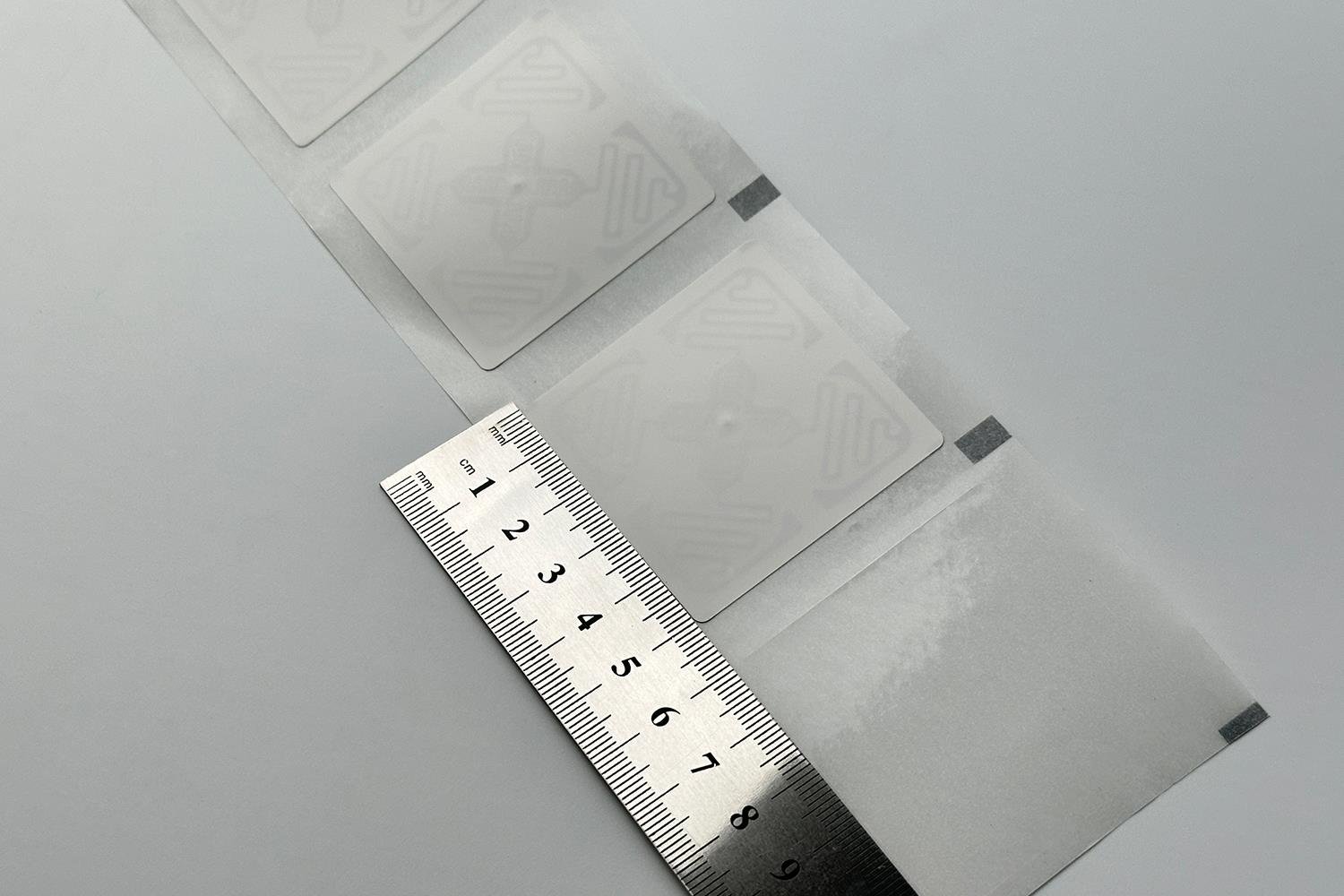

• Designed in 50 mm x 50 mm dimensions.
• It operates between -40°C and +70°C.
• It has a low power operating principle for both reading and coding.
• It has a special security feature for cloning and copying attempts.

Dear customers, the RFID tags you have examined are not coded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.
