Alien ALN 9745 SlimLine UHF RFID Tag (ALN1845001)

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.

Alien ALN 9745 SlimLine UHF RFID Tag

Powered by Alien®'s breakthrough Higgs™4 UHF RFID IC and innovative "SlimLine" antenna design, the ALN-9745 delivers industry-leading EPC Gen 2 performance and reliability in an ultra-narrow form factor, making it ideal for mounting in narrow objects and boxes and for use in narrow label applications. With its Higgs-4 core, "SlimLine" delivers next generation read and write performance, yet is fully optimised for the highest volume enterprise, retail and apparel applications. The optimised memory footprint includes 32-bit TID, 64-bit Unique TID for authentication and next-generation serialisation applications, 128-bit EPC memory bank, 128-bit user memory for distributed data applications, and password protected read and write capabilities to prevent unauthorised viewing and modification of tag data. Alien ALN 9745 SlimLine UHF RFID Tag is suitable for use on books, tobacco boxes, medicine boxes, small packages, as well as in inventory and logistics areas. Especially with its slim structure, it is an RFID tag that can easily fit in narrow and closed areas and can provide high reading performance.

Complete your projects quickly and reliably with Alien Technology®, the premium UHF RFID tags.

Features

• Powered by the Higgs-4 chip with Alien's volume-orientated structure.
• Powered by the Higgs-4 chip with Alien's volume-orientated structure.
• EPCglobal has reached the highest levels of read and write performance with the UHF Class 1 Gen 2 protocol.
• It operates in the range of 860-960 MHz.
• Alien 9745, which has EPC 128 bits, User 128 bits, TID 32 bits memory, can be read from 3 metres with a suitable reader and antenna.
• It is used on wood, plastic, glass and cardboard surfaces.

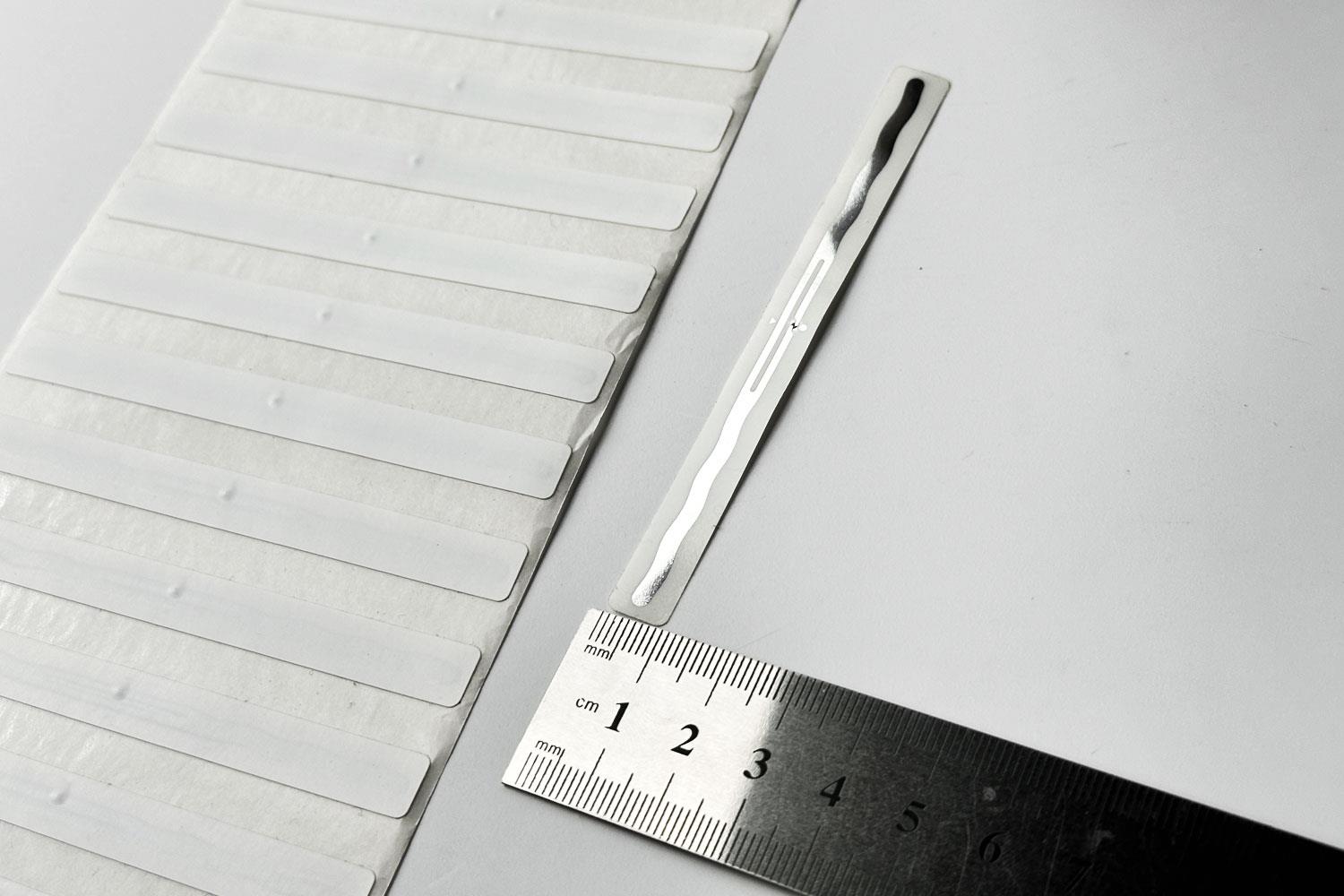

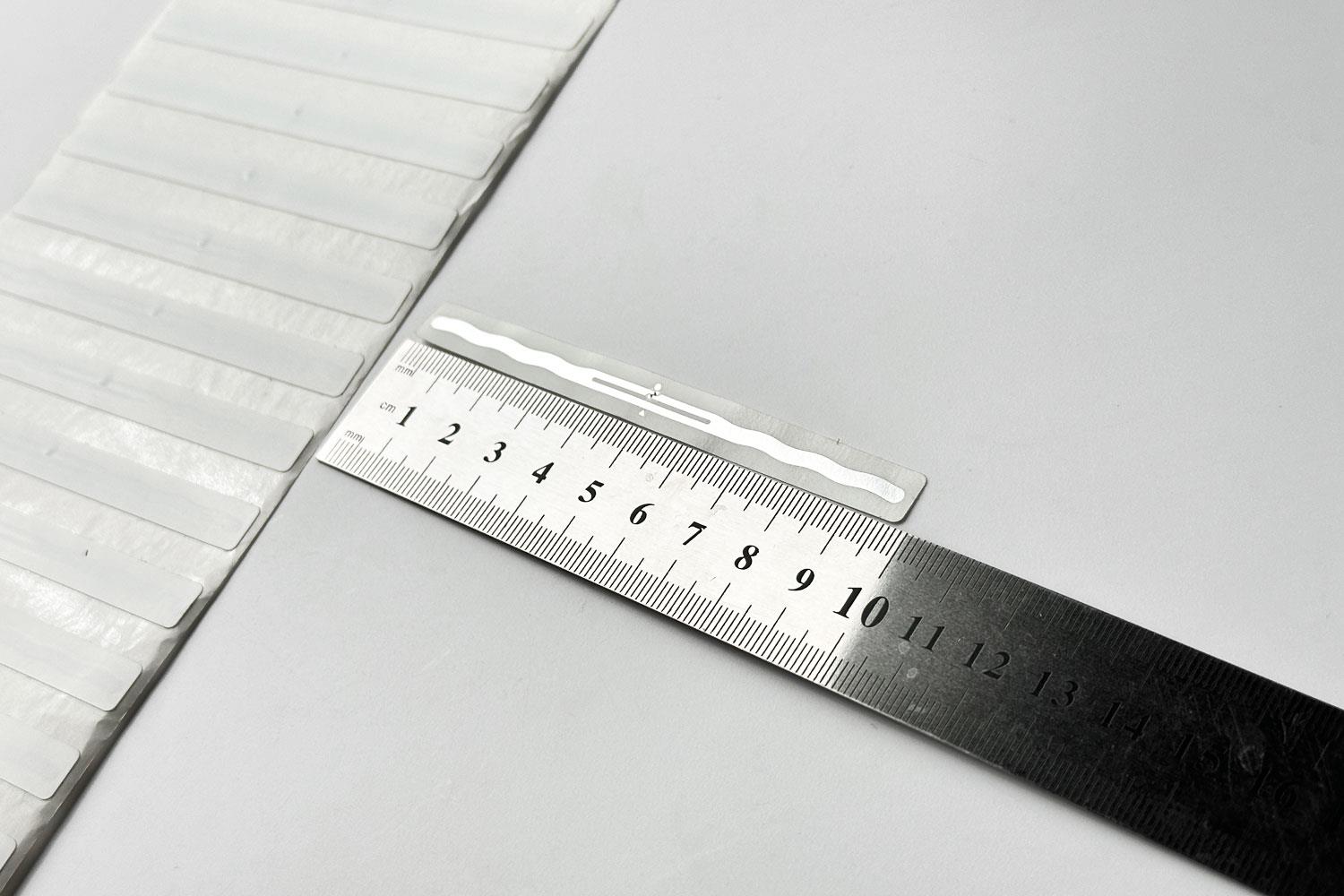

• Designed in 94 mm x 5 mm dimensions.
• It operates between -40°C and +93.3°C.
• It has a low power operating principle for both reading and coding.
• It has a special security feature for cloning and copying attempts.

Dear customers, the RFID tags you have examined are not coded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.
