RFGATE RFL62 UHF RFID 90*60 mm تذكرة (RIM4410054)

Passive tags are the most cost-effective. Passive tags do not have their own power source. They work with the power of RFID readers. These cheapest labels are the most used labels. The majority of Rfid systems are created with passive tags. It has a very wide range on a sectoral basis.

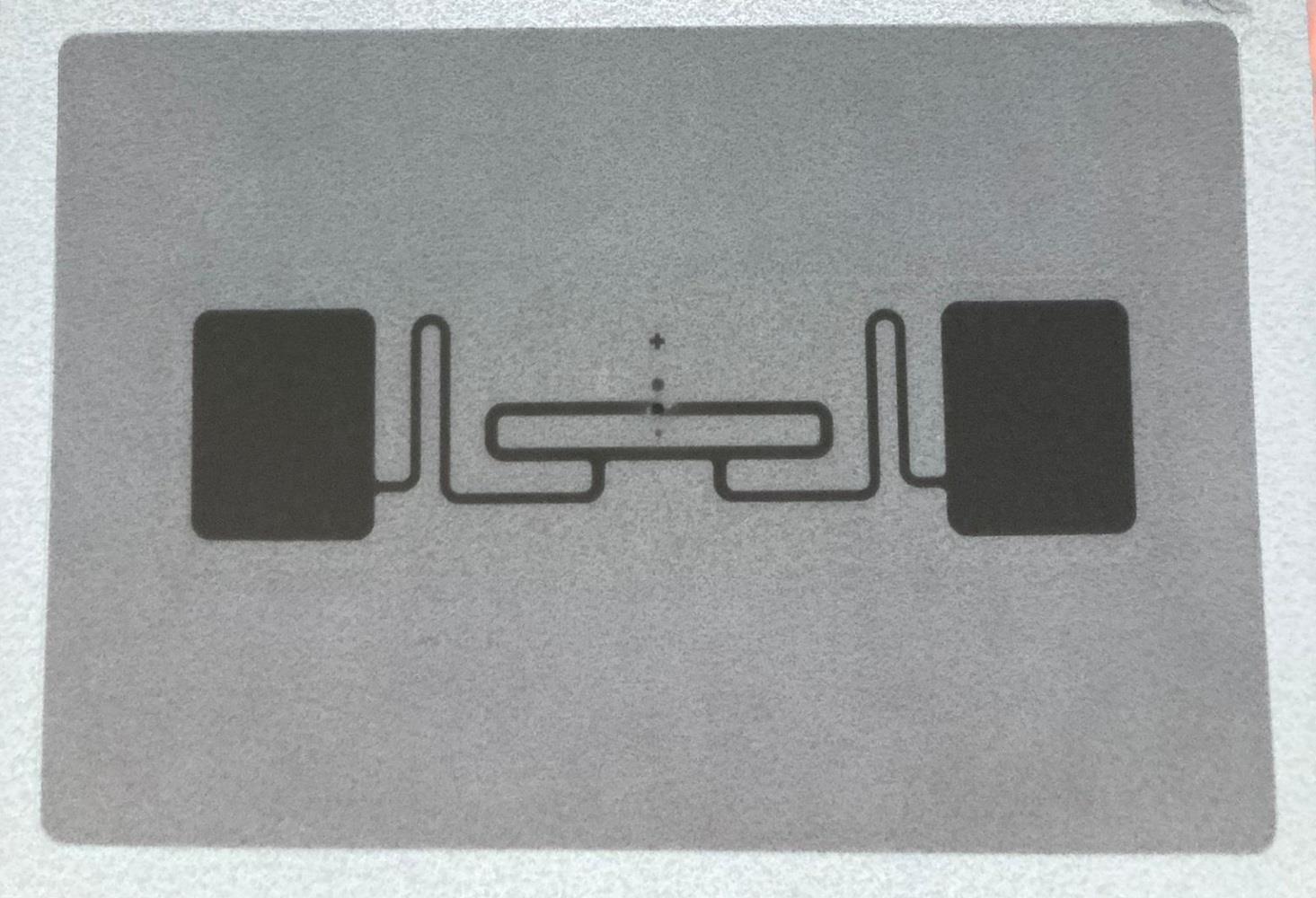

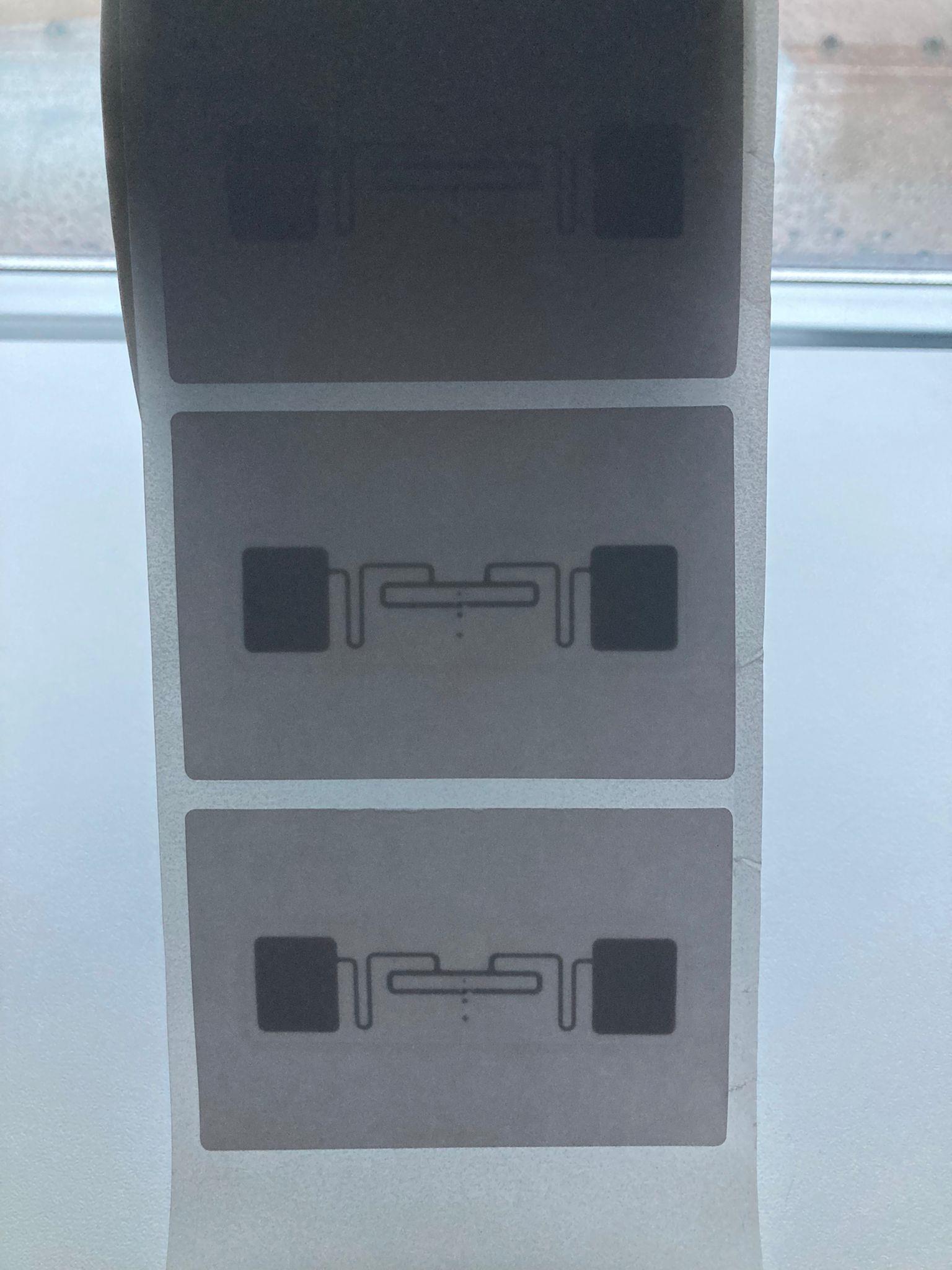

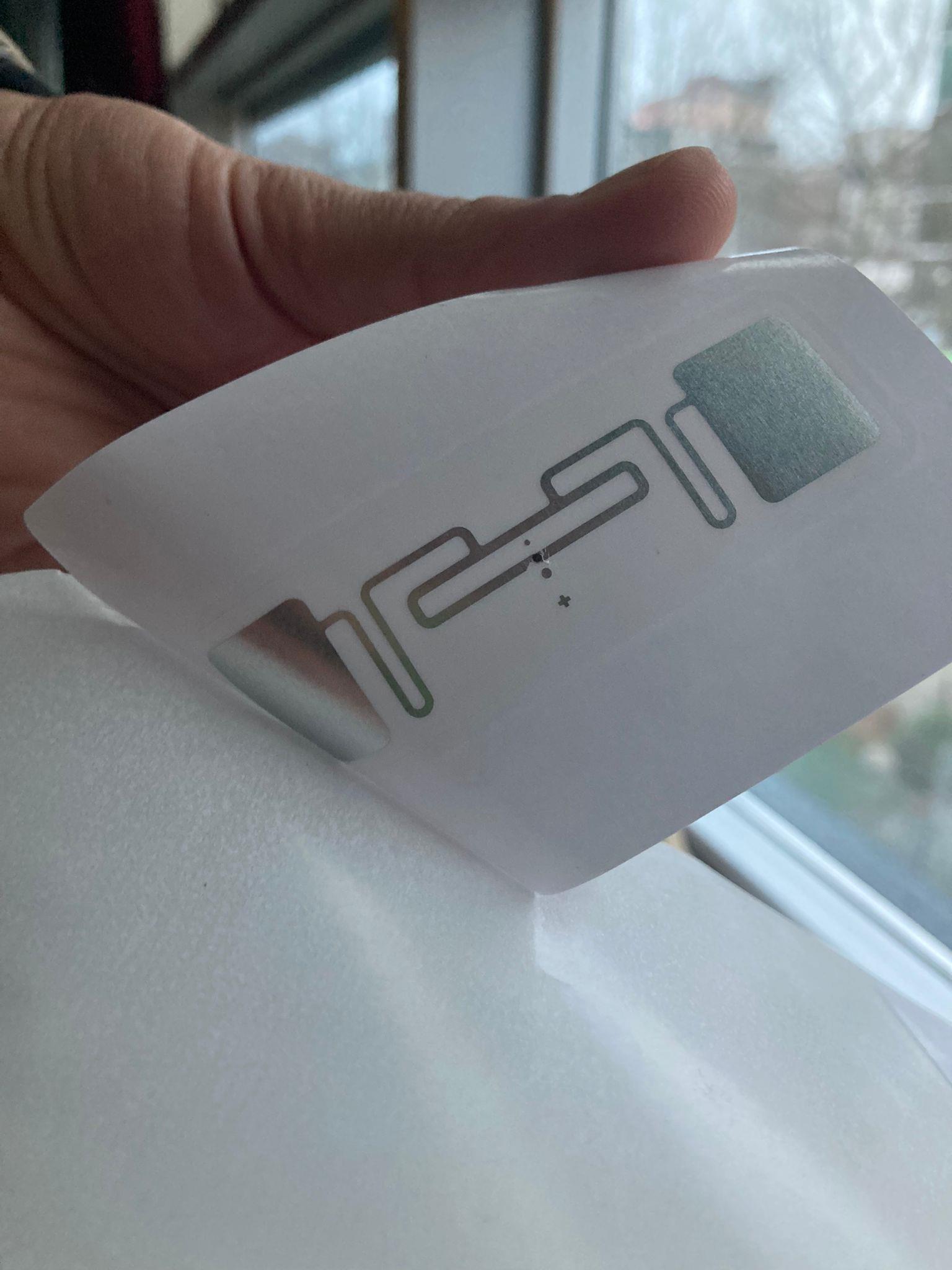

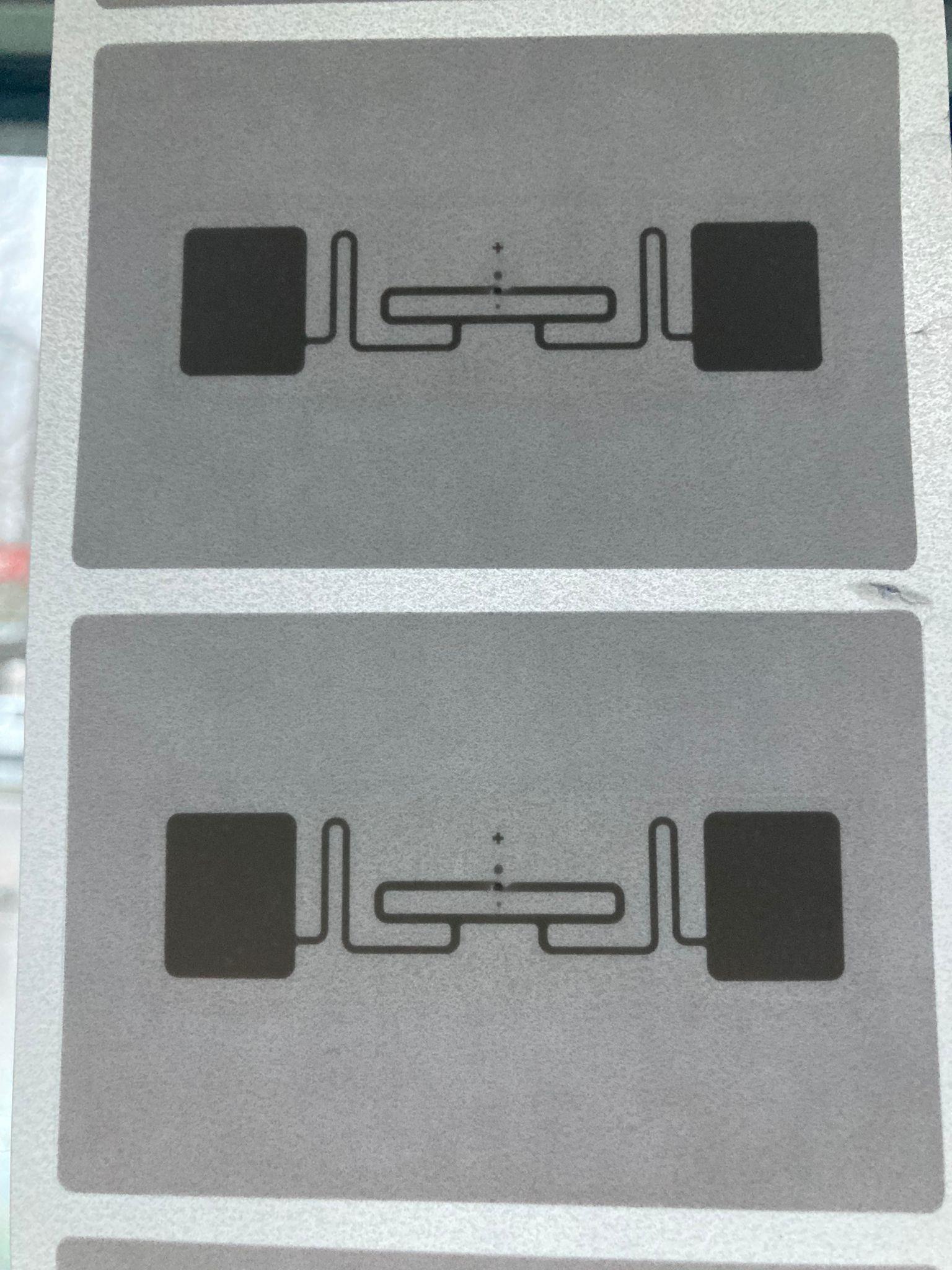

RFGATE RFL62 UHF RFID Tag 90*60 mm

RFGATE RFL62 UHF RFID Tag 90*60 mm “Short” RFID insertion is a narrower version of its high-performance, general-purpose Squiggle sibling. ALN-9662 fillers are World Tag compatible, ensuring consistent operation on various frequencies of the Americas, Europe, the Middle East, Asia and Africa. Brief offers excellent performance with its Higgs-3 core and a rich feature set that includes a 32-bit TID, 64-bit Unique TID for authentication and serialization applications, an expandable EPC memory bank, 512-bit user memory for distributed memory, and a 64-bit Unique TID for authentication and serialization applications. There is support for password protected read and write to prevent unauthorized viewing and modification of data applications and tag data.

Datasheet - RFGATE RFL62 UHF RFID Label 90*60 mm

Usage areas

RFGATE RFL62 UHF RFID Tag 90*60 mm; It is used in areas such as textile, retail, apparel, inventory tracking, warehouse, logistics, and tracking difficult materials and objects.

Features

It is powered by Alien's Higgs-3 chip with volume-oriented structure.
With the EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) protocol, the highest levels of reading and writing performance have been reached.
It operates in the 860-960 MHz range.
Alien 9662, which has EPC 96 bits, User 512 bits, TID 64 bits memory, can be read from 3 meters with the appropriate reader and antenna.
It is used on wood, plastic, glass and cardboard surfaces.
It is designed with dimensions of 21.2 mm x 73.5 mm.
It operates between -40°C and +70°C.
It has a low power operating principle for both reading and coding.
It has special security feature for cloning and copying attempts.

Dear customers, the RFID tags you have examined are not encoded. Coding etc. Technical operations are your responsibility. Please pay attention to this when placing an order. You can contact us for detailed information.
